32.768 kHz SMD Crystal Oscillator – YXC YSX306GA 8.0×3.8mm Watch Crystal

Product Description:
The 32.768 kHz SMD Crystal YXC YSX306GA is a high-precision, low-frequency quartz crystal designed for real-time clock (RTC) applications. With its compact 8.0 × 3.8 mm SMD package, this crystal provides excellent frequency stability and ultra-low power consumption, making it ideal for battery-powered and timing-critical electronic circuits.

Widely used in microcontroller RTC modules, wearable devices, low-power systems, and embedded electronics, this 32.768 kHz crystal delivers consistent oscillation at the standard watch frequency required for accurate timekeeping. Its sealed ceramic and metal housing ensures durability, long-term stability, and reliable performance even under varying environmental conditions.

Engineered for automated SMT assembly, the YSX306GA ensures low ESR, tight frequency tolerance, and high reliability, making it suitable for both professional and industrial applications.

Key Specifications:

• Frequency: 32.768 kHz

• Model: YXC YSX306GA

• Package Type: SMD

• Package Size: 8.0 × 3.8 mm

• Frequency Stability: High stability crystal

• Load Capacitance: 12.5pF (typical)

• Operating Temperature Range: -40°C to +85°C

• Equivalent Series Resistance (ESR): Low ESR for stable performance

• Application Type: RTC and low-frequency timing circuits

Features:

• Precise 32.768 kHz watch crystal suitable for RTC functions

• Compact 8.0 × 3.8 mm SMD package for high-density designs

• Excellent long-term frequency stability

• Low power consumption ideal for battery-powered systems

• High reliability and durable construction

• Compatible with automated reflow soldering

• Suitable for industrial and consumer electronic designs

Applications:

• Real-time clock (RTC) circuits

• Microcontroller timekeeping (Arduino, ESP32, STM32)

• Wearable and low-power devices

• Data loggers and metering equipment

• Communication and embedded control systems

• Consumer and industrial electronic timing modules

Package Includes:
1 × 32.768 kHz SMD Crystal YXC YSX306GA (8.0 × 3.8 mm)

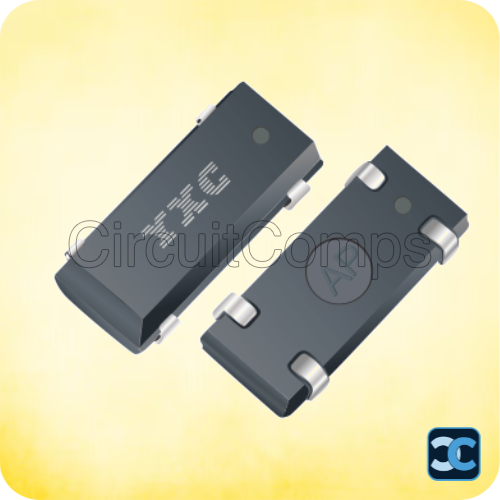

Note: Image is for representation purpose only.
