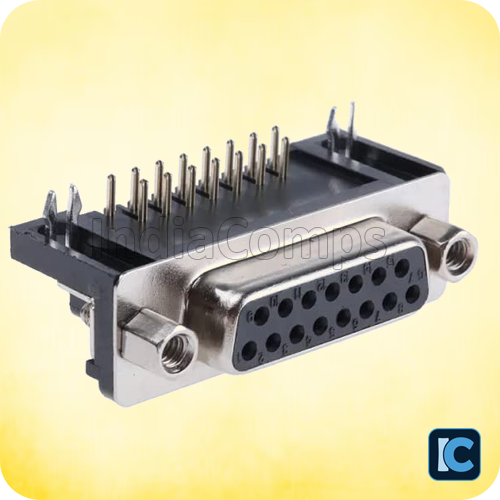

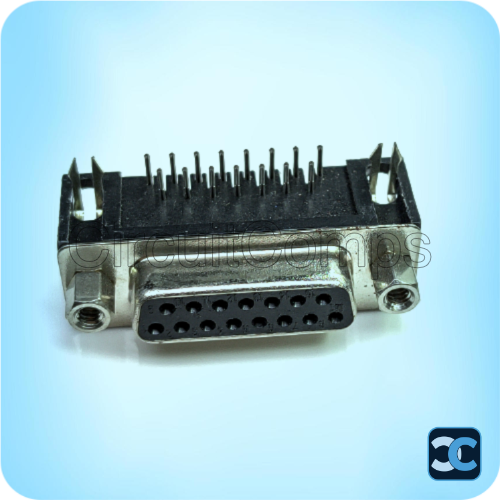

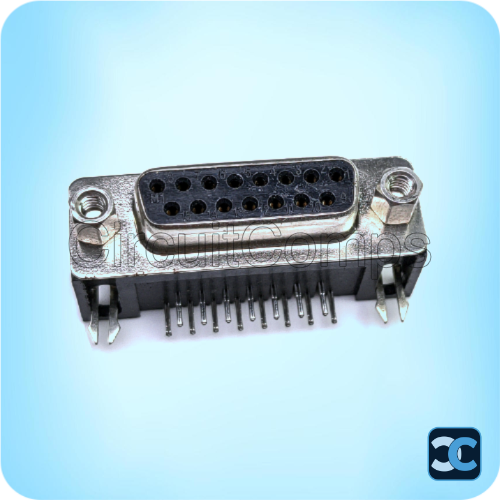

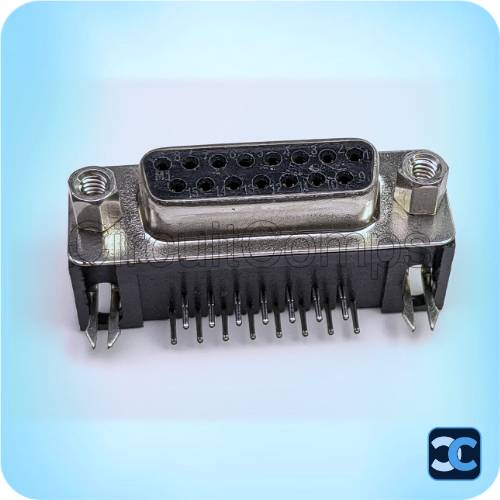

DB15 Female PCB Mount Right-Angle Connector (R/A) – Serial & Video Interface

DB15 Female PCB Mount Right-Angle Connector (R/A) – Serial & Video Interface

The DB15 Female Right Angle Connector is designed for reliable connections in serial communication, video, and control applications. Featuring 15 pins arranged per the D-sub standard, this connector provides a compact and secure interface solution, ideal for legacy devices, industrial equipment, and custom electronics.

🔹 Product Highlights:

• Connector Type: DB15 Female, Right-Angle (R/A)

• Mounting Style: PCB Mount with solder cups

• Pin Count: 15 pins per D-sub standard

• Cable Exit: 90-degree angle for tight space installations

• Shielding: Fully shielded to minimize electromagnetic interference (EMI)

• Housing: Durable, over-molded gray PVC for mechanical protection

• Mating Hardware: Reversible and compatible with standard DB15 male connectors

⚙️ Applications:

• Serial communication ports

• VGA and analog video interfaces

• Industrial control and automation systems

• Legacy device interfaces

• Data acquisition and instrument control

• OEM and custom electronic assemblies

📦 Package Includes:

• 1 × DB15 Female Right Angle PCB Mount Connector (with solder cups)

🖼️ Note:

Product images are for illustrative purposes only and may differ from the actual product.
