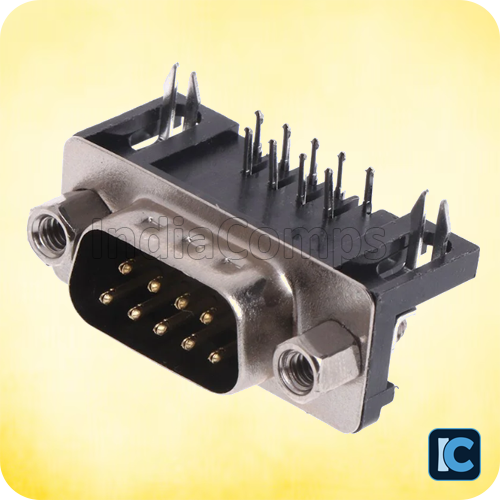

DB9 Male PCB Mount Right-Angle Connector (R/A) – RS232 Serial Port Interface

DB9 Male PCB Mount Right-Angle Connector (R/A) – RS232 Serial Port Interface

The DB9 Male Right Angle Connector is designed for reliable serial communication following the EIA/TIA-232 standard. Featuring nine standardized pins, this connector is widely used in legacy and modern applications requiring serial peripheral interfacing such as keyboards, mice, joysticks, and other data devices.

🔹 Product Highlights:

• Connector Type: DB9 Male, Right-Angle (R/A)

• Mounting Style: PCB Mount with solder cups

• Interface Standard: EIA/TIA-232 (RS232)

• Cable Exit: 90-degree angle, ideal for tight spaces and low-profile applications

• Shielding: Fully shielded for EMI protection

• Housing: Over-molded with durable gray PVC

• Mating Hardware: Reversible for flexible usage

⚙️ Applications:

• Serial communication ports (RS232)

• Confined-space D-Sub applications

• Enclosure mounting for compact devices

• OEM and custom device integrations

• Serial data transmission

• Data networks and instrument control

• Device management and peripheral interfacing

📦 Package Includes:

• 1 × DB9 Male Right Angle PCB Mount Connector (with solder cups)

🖼️ Note:

Product images are for illustrative purposes only and may differ from the actual product.
