TPL5010DDCT – Texas Instruments Ultralow Power Timer with Watchdog Function (SOT-23-6)
- Description
- Return & Refund Policy
- Reviews
🕒 TPL5010DDCT – Texas Instruments Ultralow Power Timer with Watchdog Function (SOT-23-6)
The TPL5010DDCT from Texas Instruments is an ultra-low-power timer IC with an integrated watchdog function and manual reset, designed to significantly reduce power consumption in duty-cycled or battery-powered systems. Offering programmable timing intervals from 100 ms to 7200 seconds, this device is ideal for interrupt-driven applications and ultra-low-power wake-up control.
Unlike traditional microcontroller timers that can drain system power during sleep modes, the TPL5010DDCT draws a mere 35 nA, helping reduce system power usage by up to 80%. This makes it a perfect choice for energy-harvesting, wireless sensor nodes, and safety-critical systems requiring watchdog support such as EN50271 compliance.
🔑 Key Features:
-
Ultra Low Power Consumption: 35 nA typical supply current
-
Wide Operating Voltage: 1.8V to 5.5V
-
Selectable Timeout Intervals: 100 ms to 7200 seconds
-
Integrated Watchdog Timer: Supports safety-critical designs
-
Manual Reset Function: For flexible system control
-
Package Type: SOT-23-6 (6 Pins, Surface Mount)
-
Operating Temperature Range: -40°C to +105°C
-
Manufacturer: Texas Instruments
-
Part Number: TPL5010DDCT
📦 Package Includes:
-
1 x TPL5010DDCT – Ultralow Power Timer IC with Watchdog Function (SOT-23-6)

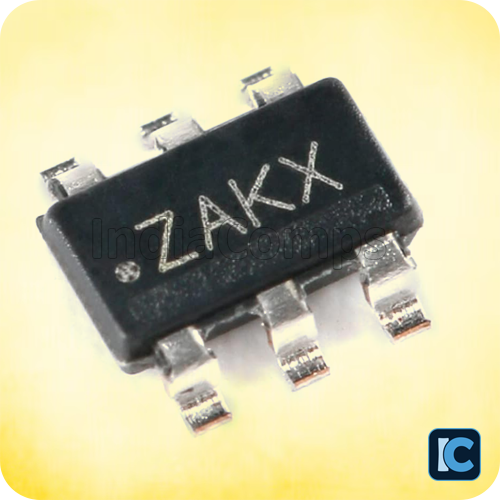

🖼️ Note: Product images are for illustrative purposes only.
