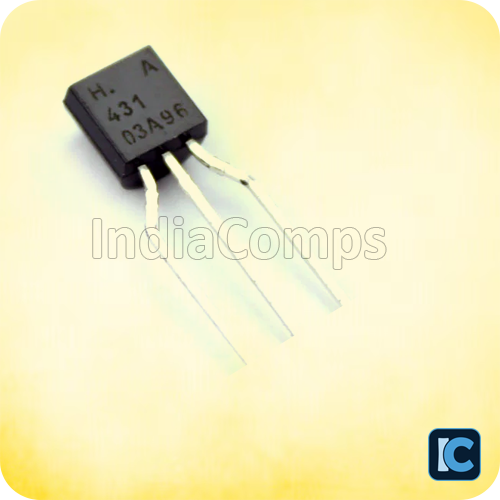

TL431A / KA431A Programmable Shunt Regulator – TO-92 Package

The TL431A / KA431A is a versatile programmable shunt voltage regulator designed for precise voltage control in power supply and analog circuits. Functioning as an adjustable Zener diode, it provides a stable 2.495V reference voltage and can be configured to regulate output voltages from 2.5V to 36V using external resistors.

With a sink current range of 1mA to 100mA and low output impedance, it ensures accurate and stable performance in a wide range of applications. Its TO-92 package allows easy integration into through-hole PCB designs, making it suitable for both prototyping and production.

Widely used in SMPS feedback circuits, battery chargers, voltage references, and overvoltage protection systems, the TL431A offers excellent temperature stability and reliable long-term operation.

Package Includes:
1 x TL431A KA431A Programmable Shunt Regulator TO-92 2.5V Reference

Note: Image is for representation purpose only.
