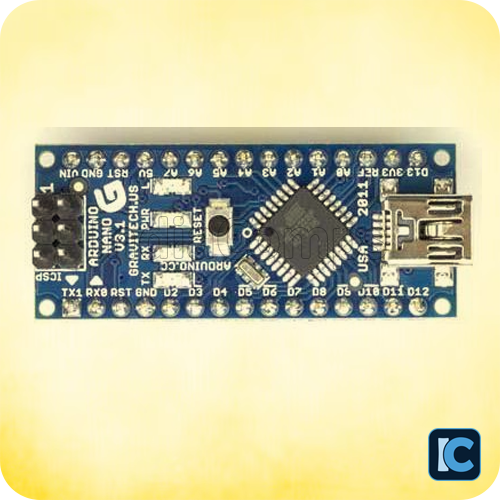

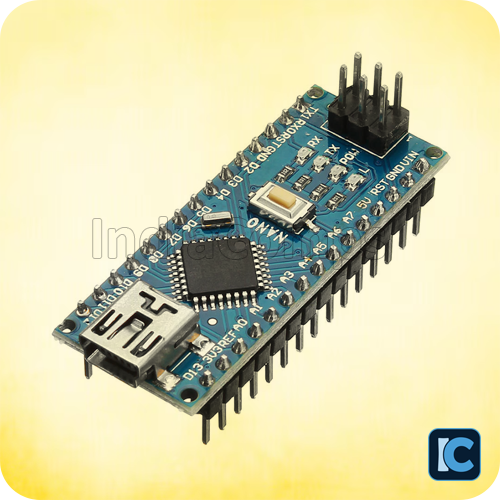

Arduino Nano R3 Compatible Board with CH340G – ATmega328P-AU (SMD)
This compact Arduino Nano R3 Compatible Board is built around the ATmega328P-AU microcontroller and includes the CH340G USB-to-serial chip for reliable and cost-effective USB communication. Fully compatible with the official Arduino Nano, this board offers the same functionality in a smaller, breadboard-friendly form factor—ideal for embedded projects, wearables, prototyping, and space-constrained designs.
It features 22 digital I/O pins, 8 analog input pins, 6 PWM outputs, and operates at 16MHz clock speed. The board automatically switches between USB power and an external source, offering flexibility in powering your project.
🔧 Key Features:
-
Microcontroller: ATmega328P-AU (SMD)
-
USB Chipset: CH340G (USB to Serial)
-
Operating Voltage: 5V
-
Input Voltage (recommended): 7V – 12V
-
Clock Speed: 16 MHz
-
Digital I/O Pins: 22 (6 PWM outputs)
-
Analog Input Pins: 8
-
Flash Memory: 32 KB (2 KB used by bootloader)
-
SRAM: 2 KB
-
EEPROM: 1 KB
-
Max Current Per I/O Pin: 40 mA
-
Mini-B USB port (cable not included)
⚙️ Additional Features:
-
Breadboard friendly design (DIP style with 0.1” spacing)
-
Onboard 5V regulator and automatic power switching
-
LEDs for Power (Blue), TX (Green), RX (Red), and L (Orange)
-
+5V to AREF jumper for reference voltage
-
ICSP header for direct programming via ISP
-
Manual reset switch
-
Supports USB power, external power (5V–12V), and 9V battery input
-
Compatible with Arduino IDE and libraries
📦 Package Includes:
-
1 × Arduino Nano R3 Compatible Board with CH340G
