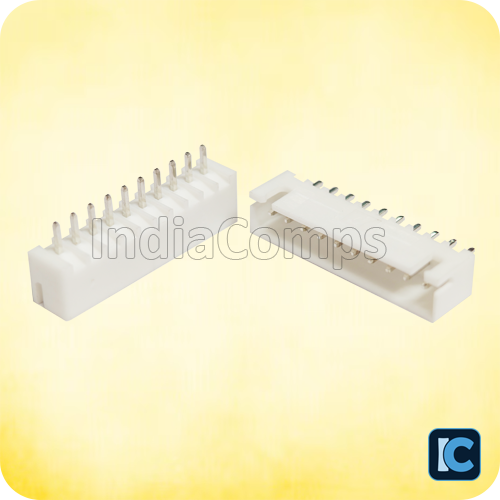

10-Pin JST XH 2.5mm Top Entry Header – PCB Mount Connector

Product Description:
The 10-Pin JST XH 2.5mm Top Entry Header is a high-quality PCB-mount connector designed for secure and reliable multi-line wire-to-board connections. With a 2.5mm pitch and a vertical top-entry orientation, this connector is ideal for complex circuits requiring multiple signal or power connections, such as robotics, control boards, battery management systems, sensor modules, and embedded electronics.

Built with durable materials, this JST XH header ensures excellent pin retention, stable electrical conductivity, and long-term mechanical reliability. The through-hole (THT) mounting design provides strong anchoring to the PCB, making it suitable for use in environments where vibration or mechanical stress is common. Fully compatible with standard 10-pin JST XH female housings, this connector offers easy and consistent mating for both prototyping and production.

Key Specifications:

• Connector Type: JST XH Series Header

• Number of Pins: 10

• Pitch: 2.5mm

• Mounting Type: Through-Hole (THT)

• Orientation: Top Entry (Vertical)

• Contact Material: Tin-plated copper

• Housing Material: High-strength plastic

• Current Rating: Up to ~3A (standard JST XH rating)

• Voltage Rating: Suitable for low-voltage electronics

• Durability: High mechanical and electrical reliability

Features:

• Standard 10-pin JST XH connector

• Top-entry design for easy vertical insertion

• Strong and stable wire-to-board connections

• Heat-resistant and solder-friendly

• Durable construction for long-term use

• Ideal for complex multi-signal circuits

• Compatible with JST XH 10-pin female connectors

Applications:

• Robotics and automation systems

• Battery management systems (BMS)

• Sensor arrays and communication modules

• Embedded control boards

• IoT and consumer electronics

• Multi-channel driver and controller boards

Package Includes:
1 × 10-Pin JST XH 2.5mm Top Entry Header

Note: Image is for representation purpose only.
