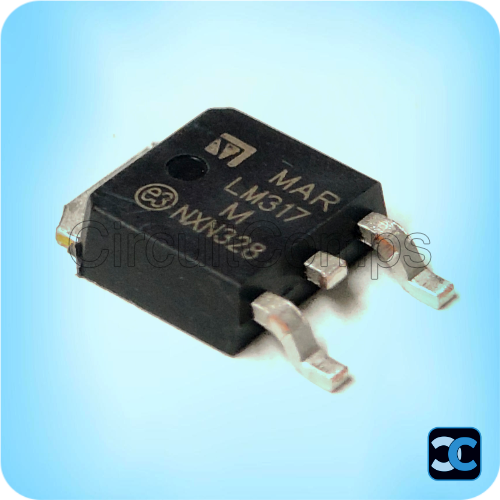

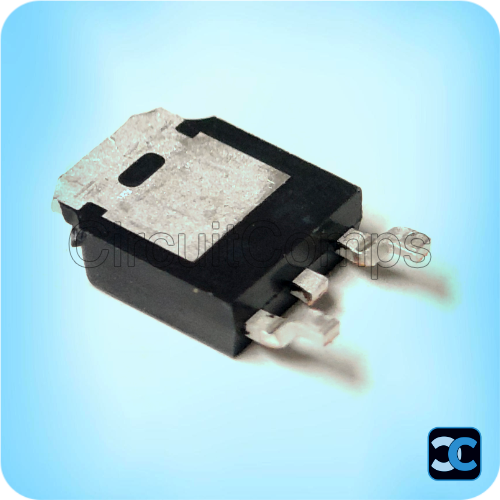

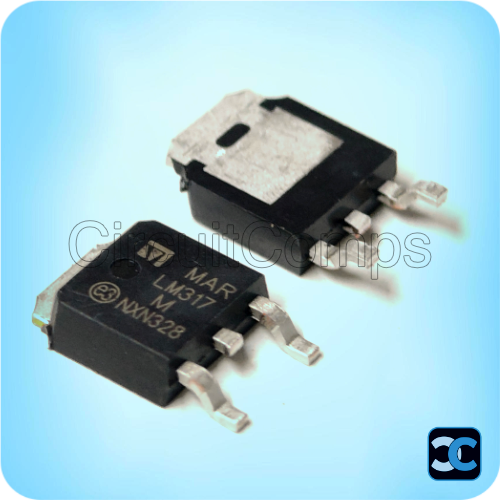

LM317 Adjustable Voltage Regulator – 1.5A – TO-252 – STMicroelectronics

The LM317 from STMicroelectronics is a robust adjustable positive voltage regulator designed to deliver up to 1.5Aof load current with an output voltage that can be set anywhere between 1.2V and 37V. Packaged in a compact TO-252 (DPAK) package, it is ideal for surface-mount power regulation applications.

Featuring 0.1% line and load regulation, the LM317 ensures stable and precise output voltage. The device includes built-in current limiting, thermal shutdown, and safe operating area (SOA) control, providing reliable protection under fault or overload conditions.

The regulator's output voltage is easily adjustable using a simple resistive divider, making it extremely versatile for a wide range of power supply designs, battery chargers, embedded circuits, and general-purpose voltage regulation tasks.

With a maximum input-to-output voltage differential of 40V, the LM317 is suitable for numerous low- and high-voltage regulation requirements.

Key Specifications:

• Adjustable output voltage range: 1.2V to 37V

• Maximum output current: 1.5A

• Line/load regulation: 0.1%

• Max input–output voltage differential: 40V

• Built-in thermal shutdown, current limiting, and SOA protection

• Package: TO-252 (DPAK)

• Manufacturer: STMicroelectronics

Package Includes:
1 x LM317 Adjustable Voltage Regulator IC

Note: Image is for representation purpose only.
