3S 20A BMS 18650 Lithium Battery Protection Board 11.1V 12V 12.6V
- Description
- Return & Refund Policy
- Reviews
✅ Product Description:

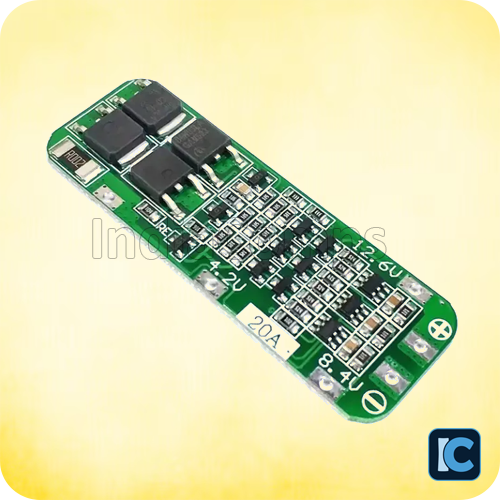

3S 20A BMS 18650 Lithium Battery Protection Board 11.1V 12V 12.6V with Balance
The 3S 20A 18650 Lithium Battery Protection Board is designed to protect and manage 3-cell lithium battery packs (11.1V to 12.6V) used in applications such as electric drills, LED lighting, sprayers, and small inverters. Featuring auto recovery and built-in balance function, this board ensures extended battery life and safe performance.
This module supports a continuous discharge and charge current of up to 20A, and integrates 10 low-resistance MOSFETs for efficient thermal and electrical handling. It's compact and ideal for DIY battery packs using 18650, 26650, or lithium polymer cells.
Features:
-
Supports 3S lithium battery packs (11.1V / 12V / 12.6V)
-
Built-in balance function with 100mA balanced current
-
Continuous charge/discharge current: 20A
-
Integrated 10 MOS tubes for load efficiency
-
Auto recovery function
-
Ideal for electric drills with starting current < 80A and power < 135W
-
Compact size: 59mm x 20mm x 4mm
Specifications:
-
Battery Type: 3S (3 cells in series)
-
Overcharge Detection Voltage: 4.25 ± 0.025V
-
Over-discharge Voltage Range: 2.3 ~ 3.0 ± 0.05V
-
Continuous Charge Current: 20A
-
Operating Temperature: -40°C to +50°C
-
Dimensions: 59mm x 20mm x 4mm
-
Weight: 4g
Application Notes:
-
Not suitable with standard 18650 cells for high-drain tools—use high C-rate cells only
-

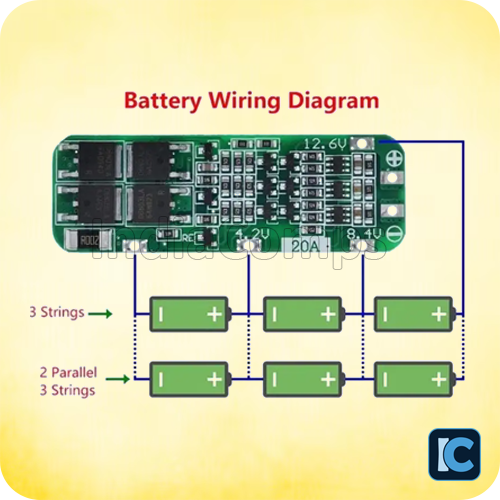

Strictly follow wiring sequence (0V, 4.2V, 8.4V, 12.6V)
-
For motor applications, add a non-polar capacitor (25V+, 10uF–100uF) across terminals to prevent damage from voltage spikes
-
Ensure all battery groups are fully charged and balanced before use
Package Includes:
-
1 x 3S 20A 18650 Lithium Battery Protection Board 11.1V 12V 12.6V
Note: Image shown is for representation only. Actual product may vary in design.
