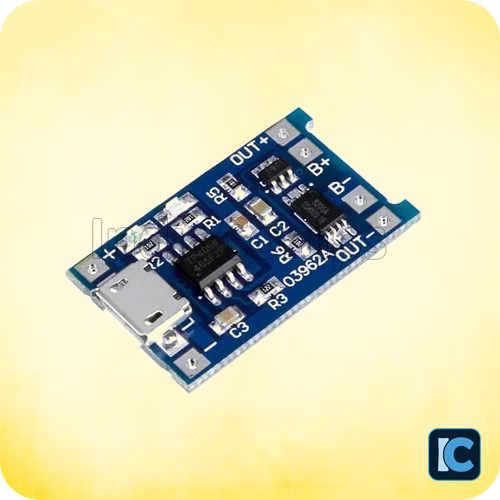

TP4056 1A Li-ion lithium Battery Charging Module With Current Protection – micro USB
- Description
- Return & Refund Policy
- Reviews
✅ Product Description:
TP4056 1A Li-ion Lithium Battery Charging Module with Current Protection – Type C
This TP4056 1A Lithium Battery Charging Module is designed for safely charging single-cell 3.7V Li-ion batteries. It uses the reliable TP4056 charge controller IC with an integrated DW01 protection IC, offering constant 1A charging current and built-in safety features like over-voltage, over-charge, and over-discharge protection. The Type-C USB input makes it ideal for modern projects and easy powering.
This module is especially useful for DIY battery-powered devices using 18650 cells that lack a built-in protection circuit. When battery voltage drops below 2.4V, it automatically cuts off the load to prevent battery damage.
How to Use:
-
Connect a Type-C cable to power the module, or use 5V DC via
IN+
andIN-
pads. -
Connect your 3.7V lithium cell to
B+
andB-
. -
You may also connect a load to
OUT+
andOUT-
, but always disconnect the load during charging. -
LED Indicators: Red = Charging, Green = Fully Charged
Note:
-
Use correct polarity: No reverse polarity protection
-
Do not charge above 1C rate of your battery capacity
-
Best charging current: ~37% of battery capacity (e.g., 400mA for 1000mAh)
-
If input voltage >5.2V, the current may auto-limit for chip safety
Features:
-
Charge current: 1A max
-
Type C USB input
-
Full charge cutoff at 4.2V
-
Under-voltage cutoff at 2.5V
-
Over-current protection: 3A
-
Compact design, easy to integrate
-
Red & Green LED indicators for charge status
Specifications:
-
Charging Accuracy: ±1.5%
-
Charging Voltage: 4.2V
-
Input Voltage: 4.5V–5.5V
-
Overcurrent Protection: 3A
-
Undervoltage Protection: 2.5V
-
Operating Temperature: -10°C to 85°C
-
Size: 25mm (L) x 6mm (H)
-
Weight: 20g
Package Includes:
-
1 x TP4056 1A Li-ion Lithium Battery Charging Module with Current Protection (Type C)
Note: Images are for reference only. Actual product may vary slightly in appearance.
