0.72 cm (0.28 inch) 0-100V Three Wire DC Voltmeter Red
- Description
- Return & Refund Policy
- Reviews
✅ Product Description
The 0.28 inch (0.72 cm) 0-100V Three Wire DC Voltmeter – Red LED is a compact, lightweight, and highly efficient digital voltmeter, ideal for quick voltage measurements across various DC sources. With a bright red LED display and auto-adjusting decimal precision, it provides accurate and real-time readings in a minimal footprint.
Perfect for battery monitoring, DIY electronics, or embedded applications, this voltmeter supports reverse polarity protection and displays readings with up to 0.1V accuracy. It’s designed to adapt its decimal point for optimal clarity: two decimal places for voltages <10V and one decimal place for voltages >10V.

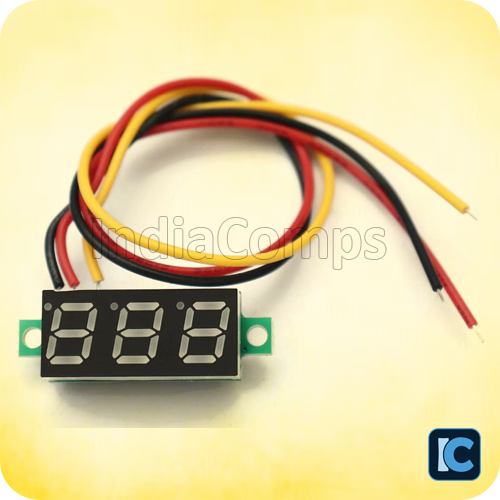

Wiring Made Simple:
-
Red Wire: Connect to the positive terminal of the power supply.
-
Black Wire: Connect to the negative terminal (common ground).
-
Yellow/White Wire: Connect to the positive side of the voltage you want to measure.
⚠️ Note: While it supports up to 30V input for display, the recommended operating range is 3.6V to 28V to prevent permanent damage due to voltage spikes or power ripples.
🔧 Specifications:
-
Display Size: 0.28 inch (0.72 cm)
-
Input Voltage Range: 3V to 100V DC
-
Recommended Operating Voltage: 3.6V to 28V
-
Color: Red LED
-
Wire Count: 3
-
Accuracy: ±0.1V
-
Refresh Speed: Every 200 ms
-
Operating Temperature: -10°C to 60°C
-
Mounting Hole Diameter: 3mm
-
Dimensions: 30 x 13 x 9 mm
-
Weight: 3g
-
Current Consumption: ~10mA
🧰 Applications:
-
Battery voltage monitoring (Cars, Bikes, DIY Packs)
-
Power supply testing
-
Embedded systems & microcontroller projects
-
Hobby electronics and project panels
📦 Package Includes:
-
1 x 0.28 inch Red LED DC Digital Voltmeter (0–100V, 3-Wire)
-
Note: Image shown is for representation only.
