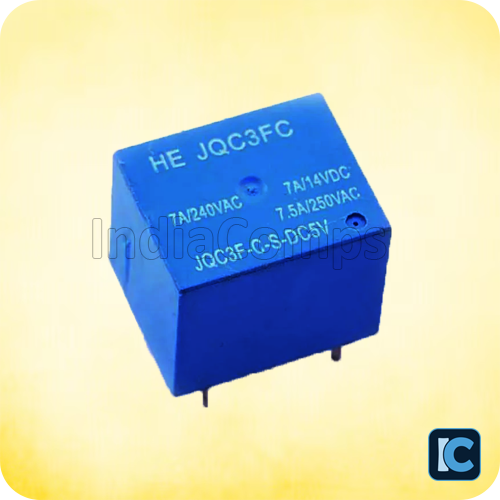

5V SPDT PCB Mount Relay - Sugar Cube Relay - 5 pin
- Description
- Return & Refund Policy
- Reviews
5V Relay Module – Reliable Switching for Electronics and Automation
This 5V relay is a widely used switching device ideal for various electronic circuits and automation projects. Designed for controlling AC and DC loads, it is commonly employed in home automation systems, safety circuits, and automotive electronics to switch or disconnect heavy loads based on predefined conditions.
Key Specifications:
-
Coil Voltage: 5V DC
-
Trigger Current: 70mA (nominal)
-
Max AC Load Current: 7A at 250/125V AC
-
Max DC Load Current: 10A at 30/28V DC
-
Compact 5-pin plastic molded configuration
-
Operating Time: 10 ms; Release Time: 5 ms
-
Mechanical Switching Speed: Up to 300 operations/minute
Features & Usage:

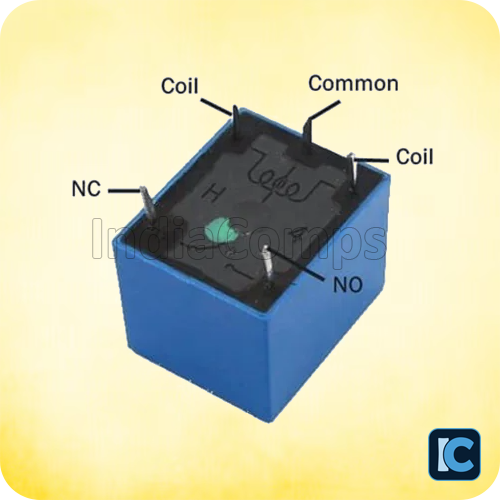

The relay features common (COM), normally open (NO), and normally closed (NC) terminals for flexible load control. Connect your load between COM and NO terminals to activate it when the relay energizes, or between COM and NC to disconnect when energized. With a coil trigger voltage of 5V, it can be directly controlled by any 5V logic device such as Arduino UNO, MEGA, or equivalent microcontrollers, as well as standard 5V power supplies.
Applications:
-
Switching circuits in electronics
-
Home automation for AC load control
-
Scheduled or conditional heavy load switching
-
Safety systems to isolate loads during faults
-
Automotive electronics including indicators and glass motors
Package Includes:
-
1× 5V DC Relay Module
Note: Actual product appearance may vary from images shown.
