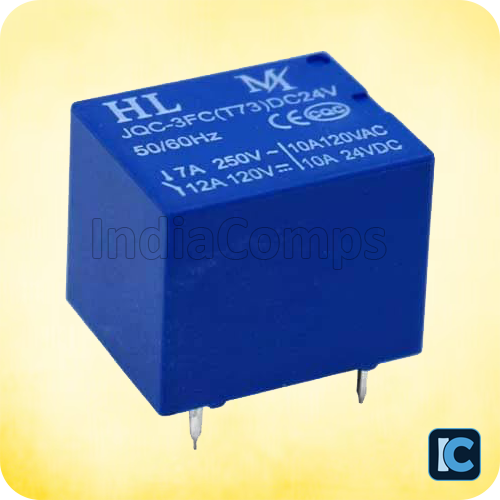

24V SPDT PCB Mount Relay - Sugar Cube Relay - 5 pin
- Description
- Return & Refund Policy
- Reviews
24V Relay Module – Reliable Switching for Electronics and Automation
The 24V Relay Module is a robust and versatile switching device ideal for electronic circuits, automation systems, and industrial applications. It enables control of AC or DC loads through low-power control signals, making it a go-to component in home automation, safety interlocks, and automotive electronics.
Key Specifications:
-
Coil Voltage: 24V DC
-
Trigger Current: ~70mA (nominal)
-
Max AC Load Current: 10A @ 250V/125V AC
-
Max DC Load Current: 10A @ 30V/28V DC
-
Type: Compact 5-pin plastic molded design
-
Operating Time: 10ms
-
Release Time: 5ms
-
Mechanical Switching Speed: Up to 300 ops/min
Features & Usage:

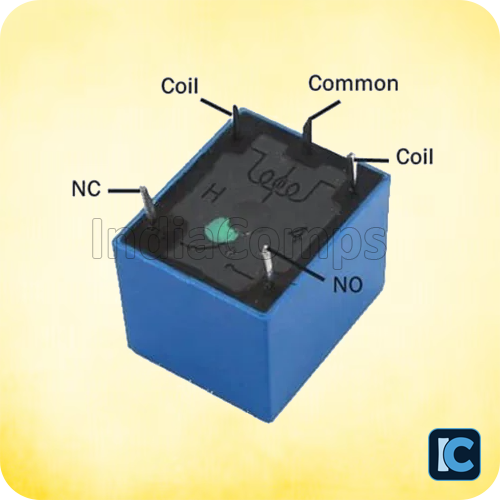

This relay module offers COM (Common), NO (Normally Open), and NC (Normally Closed) terminals for flexible wiring based on control logic. When powered by a 24V logic signal, such as from a PLC, industrial controller, or microcontroller with a 24V output, it can safely switch high-voltage AC or DC loads.
Connect the load between COM and NO for activation on relay ON, or COM and NC for disconnection on relay ON. Suitable for Arduino (with external 24V trigger setup) and industrial control systems.
Applications:
-
Electronic switching circuits
-
Smart home automation systems
-
Timed or sensor-triggered load switching
-
Overload isolation in safety systems
-
Automotive applications like indicator lamps, motors, etc.
-
Industrial control panels
Package Includes:
-
1 × 24V DC Relay Module
Note: Product appearance may vary slightly from images shown.
