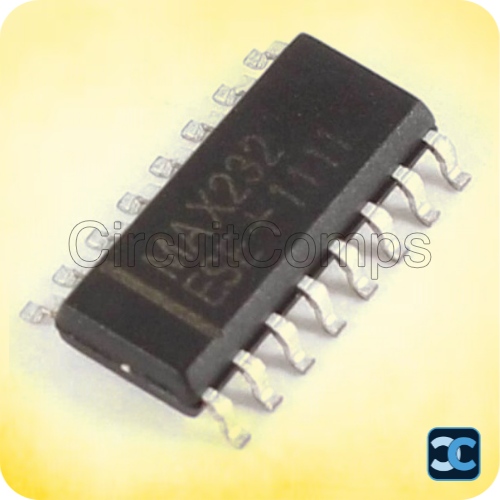

MAX232 Serial Level Converter IC | SOIC-16 TTL to RS232 Driver/Receiver

The MAX232 is a widely used serial level converter IC designed to bridge communication between TTL/CMOS logic devices (0–5V) and RS232-compatible systems (+25V to –25V). This SMD SOIC-16 version integrates dual drivers and receivers along with an internal capacitive voltage generator, enabling reliable RS232 signal generation from a single 5V supply—no external high-voltage supply required.

Each receiver can accept up to ±30V RS232 signals, converting them safely to TTL/CMOS logic levels, while each driver converts MCU logic level signals into proper RS232 levels. This makes the MAX232 an essential interface IC for microcontrollers communicating with PCs, USB-serial adapters, modems, and other RS232-based equipment.

Features / Specifications

• IC Type: MAX232

• Package: SOIC-16 (SMD)

• Function: TTL/CMOS ↔ RS232 level conversion

• Supply Voltage: 5V (single supply)

• Drivers/Receivers: 2 drivers (T1, T2) + 2 receivers (R1, R2)

• Receiver Input Range: ±30V

• Integrated charge pump for RS232 voltage generation

• Ideal For:

  • Microcontroller to PC serial communication

  • Embedded UART to RS232 converters

  • Modems and serial communication devices

  • TTL/CMOS compliant communication links

Package Includes:
1 × MAX232 Serial Level Converter – SMD (SOIC-16)

Note: Images are for representation purposes only.
