ME2108A50PG 5.0V Step-Up Regulator IC – High Efficiency Boost Converter – SOT89-3

The ME2108A50PG is a high-efficiency 5.0V Step-Up (Boost) DC-DC Regulator IC from Microne, designed for portable and low-voltage-powered applications. Operating from an input voltage as low as 1.0V (start-up at ≤0.9V), this boost converter provides a stable 5.0V output with ±2.5% accuracy and up to 400mA output current when powered from 3.0V.

Built using a low-power CMOS process, the ME2108A50PG minimizes switching noise and ensures smooth, stable conversion with very few external components—requiring only three passive parts for a complete solution. With a typical efficiency of 85%, and a maximum switching frequency of 180kHz, it is ideal for battery-powered designs.

The device also features a CE (chip enable) pin, allowing low-power shutdown to reduce overall system consumption. Compact, reliable, and easy to integrate, the ME2108A50PG SOT89-3 regulator is suited for handheld devices, sensors, microcontroller systems, and 5V interface circuits.

Features / Specs

• Input Voltage Range: 1.0V to 4.5V

• Output Voltage: 5.0V

• Output Voltage Accuracy: ±2.5%

• Output Current: 400mA @ Vin = 3.0V

• Low Start Voltage: ≤0.9V @ 1mA load

• High Efficiency: 85% (typical)

• Switching Frequency: 180kHz (typ.)

• Low supply current, CMOS design

• Requires only three external components

• CE (Enable) pin for shutdown power saving

• Package: SOT89-3

• Manufacturer: Microne / MicrOne

Applications

• Battery-powered devices

• Sensor modules

• Low-voltage to 5V conversion

• Portable electronics

• Microcontroller-based systems

• Handheld 5V circuits

Package Includes

1 × ME2108A50PG – 5.0V Step-Up Regulator IC – SOT89-3

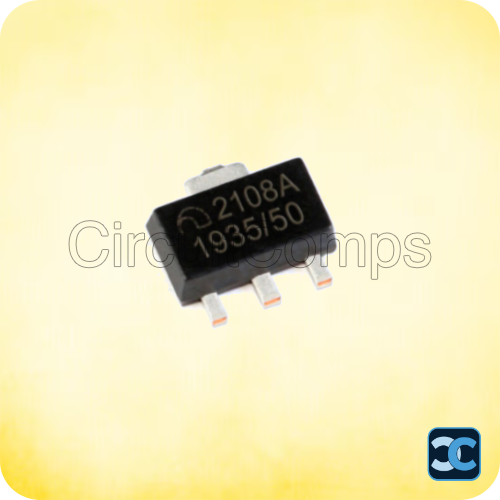

Note: Image is for representation purposes only and may differ from the actual product.
