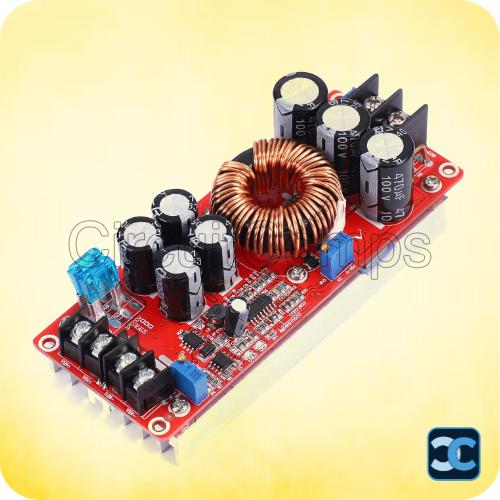

1200W DC-DC Buck Boost Converter – Adjustable Constant Voltage & Current Power Module

Product Description (SEO Optimized):
The 1200W DC-DC Buck Boost Converter is a high-efficiency, non-isolated power module engineered for precise voltage and current regulation. Designed for demanding electronic and industrial applications, this adjustable power supply module supports both step-up (boost) and step-down (buck) conversion, making it ideal for variable power needs in laboratories, battery charging systems, and renewable energy setups.

With an input voltage range of 10V–60V and an adjustable output range of 12V–83V, this converter provides exceptional flexibility. It features Constant Voltage (CV) and Constant Current (CC) modes, ensuring stable output and reliable performance under varying loads. The module is capable of up to 1200W output power with conversion efficiency reaching 95%.

Built using high-quality MOSFETs, thick copper PCB traces, and an optimized circuit design, this converter offers durability, superior heat dissipation, and long-term stability. It’s suitable for applications such as LED driving, solar charging, automation systems, and DIY laboratory power supplies.

Features:

• 1200W high-power output with excellent load regulation

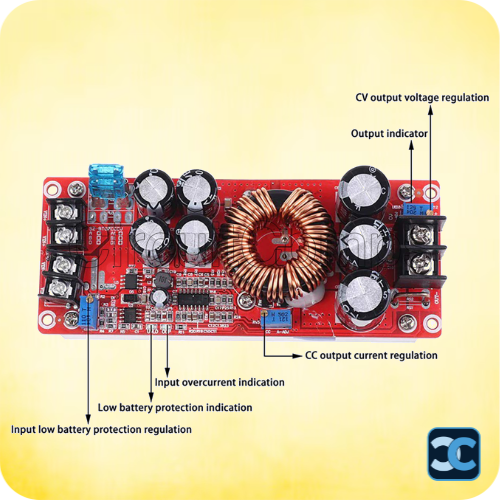

• Adjustable Constant Voltage (CV) and Constant Current (CC) control

• Buck-Boost operation for both step-up and step-down conversion

• High conversion efficiency up to 95%

• Short-circuit and overcurrent protection

• Robust build quality with industrial-grade materials

• Suitable for 3.3V/5V/12V/24V power projects

Applications:

• Laboratory adjustable power supplies

• Battery charging (Li-ion, lead-acid, NiMH, etc.)

• Renewable energy and solar systems

• Electric vehicle and e-bike converters

• High-power LED drivers

• Robotics and automation control

Specifications:

• Input Voltage: 10V–60V DC

• Output Voltage: 12V–83V adjustable

• Output Current: Up to 20A (with adequate cooling)

• Output Power: Up to 1200W

• Conversion Efficiency: ≤95%

• Working Frequency: 150kHz

• Operating Temperature: -40°C to +85°C

• Module Dimensions: 130 × 52 × 46 mm

• Weight: 245g

Package Includes:
1X 1200W DC-DC Buck Boost Converter – Adjustable Constant Voltage & Current Power Module

Note: Image is for representation purposes only.
