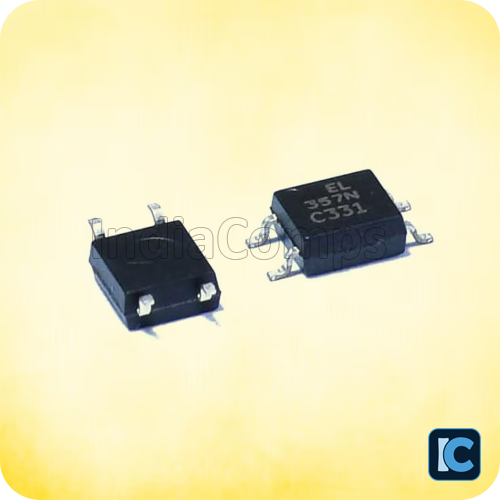

EL357 (PC817 SMD) Optocoupler
- Description
- Return & Refund Policy
- Reviews
Product Description:
The EL357 is a high-performance SMD optocoupler from Everlight, designed as a reliable alternative to the popular PC817 in surface-mount (SOP-4) applications. It features a phototransistor output with high isolation and efficient signal transmission, making it ideal for switching, signal isolation, and power control in industrial and consumer electronics.
With a high isolation voltage of 3750 Vrms, a wide current transfer ratio (CTR) of 50% to 600%, and a robust operating temperature range from -55°C to +100°C, the EL357 ensures stable operation in demanding environments. Its RoHS compliance and compact SOP-4 packaging make it perfect for modern automated SMT assembly lines.
Key Specifications:
-
Manufacturer: Everlight
-
Product Category: Transistor Output Optocouplers
-
Package / Case: SOP-4 (Surface Mount)
-
Output Device: NPN Phototransistor
-
Isolation Voltage: 3750 Vrms
-
CTR (Current Transfer Ratio): 50% to 600%
-
Maximum Collector-Emitter Voltage: 80 V
-
Collector-Emitter Saturation Voltage: 0.2 V
-
Forward Voltage (Diode): 1.4 V
-
Forward Current / Input Current: 20 mA
-
Maximum Power Dissipation: 200 mW
-
Maximum Reverse Voltage (Diode): 4 V
-
Operating Temperature Range: -55°C to +100°C
-
Number of Channels: 1
-
Packaging: Reel
-
RoHS Compliant
Applications:
-
Signal isolation in microcontrollers
-
Switching power supplies
-
Relay replacement
-
Industrial automation and control
-
AC mains sensing
