SIM Card Holders

Description:

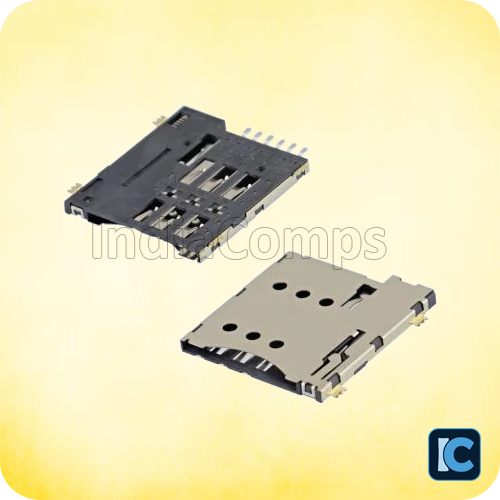

This Micro SIM Card Socket is a precision-engineered 6-pin connector, ideal for GSM, GPS, IoT, and embedded applications. It features a spring-loaded push-push mechanism—simply push the SIM card in to lock, and push again to eject, ensuring secure and convenient card handling.

With a compact 12x15mm SIM card compatibility and SMD mounting design, this socket is well-suited for space-constrained PCBs. The included technical drawings make integration seamless for hardware engineers and product designers.

Key Features:

• Compatible with Micro SIM cards (12x15mm)

• 6-pin electrical interface: VCC, GND, CLK, RST, I/O, VPP

• Push-in / Push-out spring-loaded mechanism

• Compact, low-profile design (height ~1.35mm)

• Easy surface mount (SMD) installation

• Ideal for GSM, GPS, and IoT embedded systems

Mechanical Dimensions:

• Overall size: 17.21mm x 16.96mm x 1.35mm (approx.)

• Eject stroke: 3.75mm

• Locked position stroke: 1.00mm

• Recommended PCB layout included (see images)

Package Includes:

• 1 x Micro SIM Card Socket – 6 Pins – Spring Loaded Push Type

Note:
Images and diagrams shown are for representation and reference only. Product design may vary slightly based on manufacturing lot.
