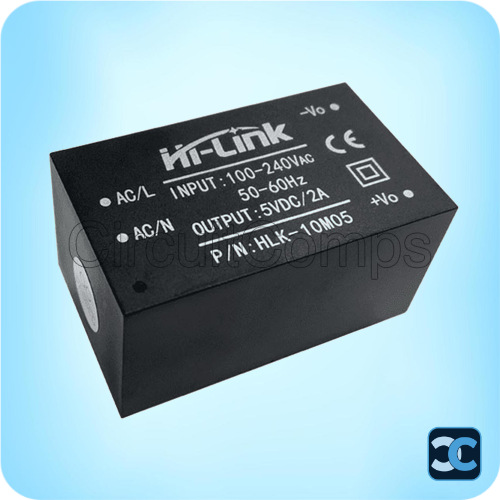

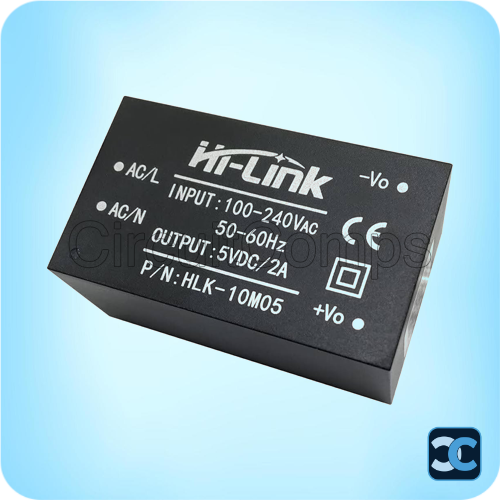

Hi-Link HLK-10M05 5V 2A 10W AC to DC Power Supply Module

The Hi-Link HLK-10M05 is a compact, isolated switching power supply module that delivers 5V DC at up to 2A output from a wide AC input range of 100–240V. With a power rating of 10W, this module is ideal for powering embedded devices, automation systems, smart home setups, and other electronics requiring efficient and reliable 5V conversion directly from mains.

Designed for PCB mounting, the HLK-10M05 is ultra-compact, energy-efficient, and compliant with UL and CE standards. Its high integration reduces external component requirements, making it perfect for space-sensitive and high-volume designs.

✅ Features:

• Universal AC input: 100V – 240V

• Output: 5V DC, up to 2A

• Compact size: 46.9 × 27.8 × 21.8 mm

• High efficiency up to 96%

• Output overload and short circuit protection

• 3000V isolation between input and output

• Complies with UL, CE, EMC, and safety standards

• Natural air-cooled design (no heatsink required)

• No-load power loss: < 0.1W

📐 Technical Specifications:

• Model: HLK-10M05

• Input Voltage: 100V – 240V AC

• Output Voltage: 5V DC

• Max Output Current: 2A (short-time > 2.2A)

• Output Power: 10W

• Efficiency: Up to 96%

• Isolation Voltage: 3000V AC

• Operating Temp: -25°C to +60°C

• Humidity: 5% – 95% RH

• Cooling Method: Natural air cooling

• Dimensions: 46.9 × 27.8 × 21.8 mm

• Weight: 45 g

⚙️ Applications:

• Smart home devices

• IoT and embedded controllers

• Industrial automation systems

• Communication equipment

• Consumer electronics

• Sensor and instrumentation modules

📦 Package Includes:

• 1 × Hi-Link HLK-10M05 5V 10W AC to DC Power Supply Module

🖼️ Note: All product images are for representation purposes only. Actual product appearance may vary.
