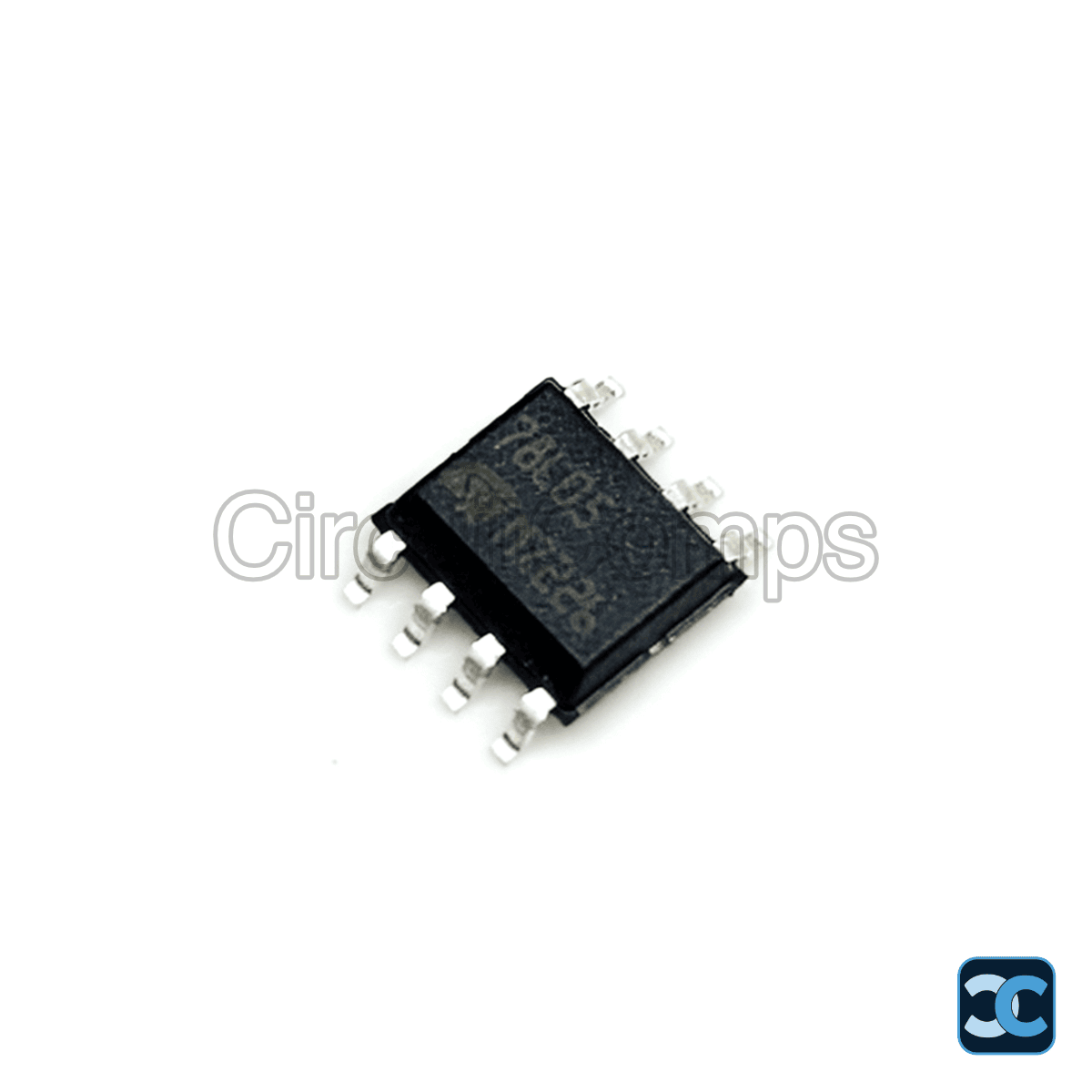

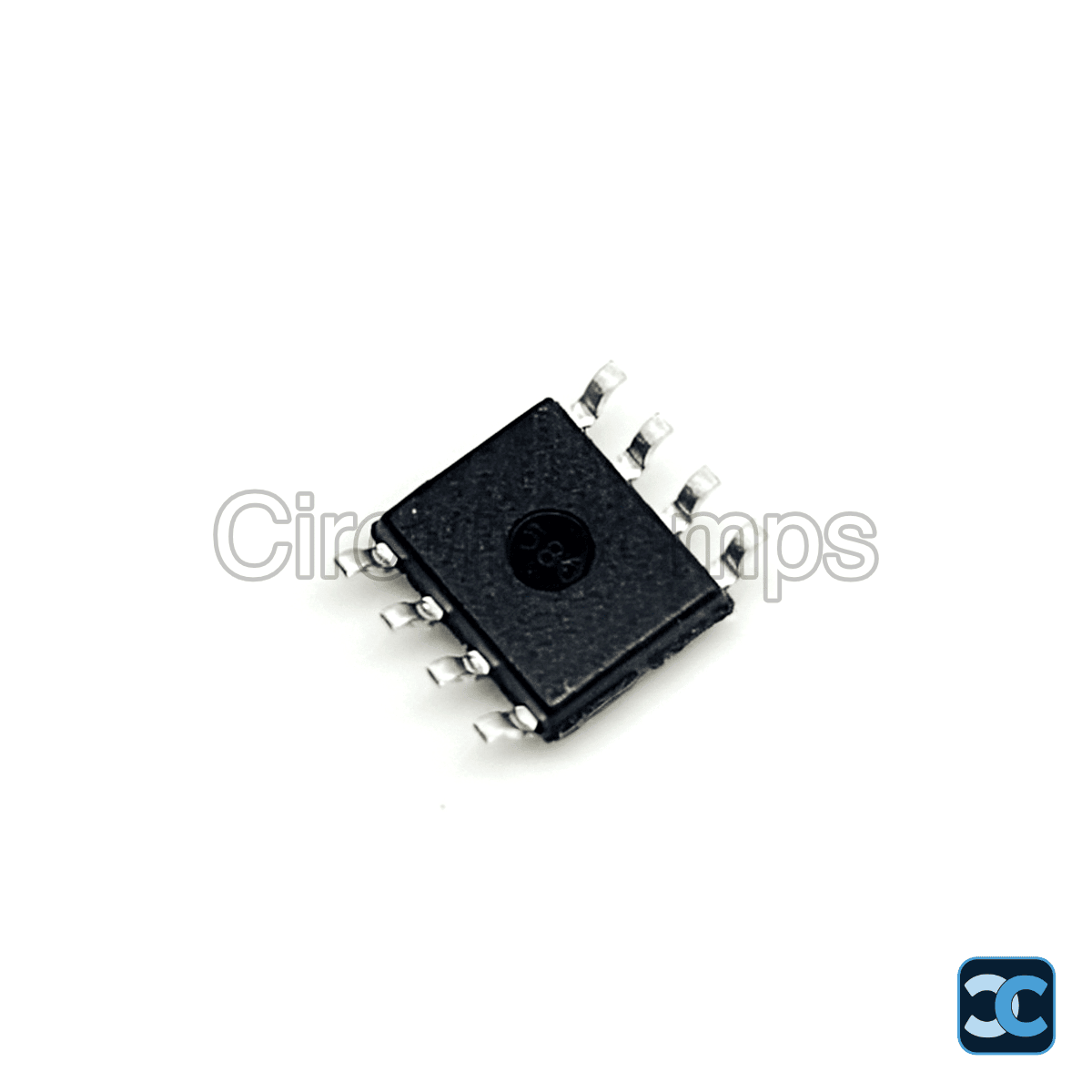

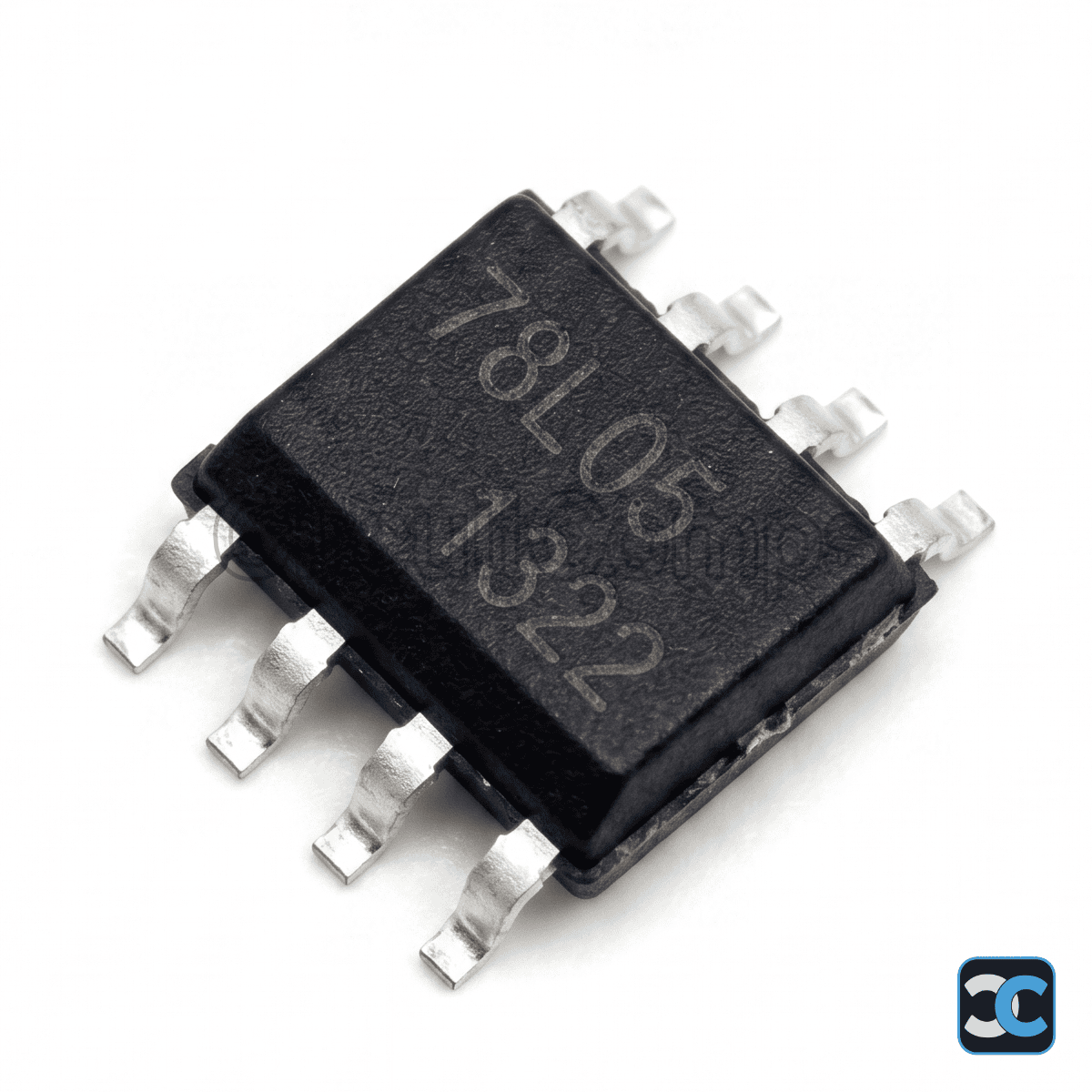

L78L05CD13TR 5V 100mA Linear Voltage Regulator SOIC-8 - STMicroelectronics

The L78L05CD13TR from STMicroelectronics is a three-terminal fixed positive linear voltage regulator from the L78L series, housed in the SOIC-8 SMD package. It delivers a stable 5V output at up to 100mA from a 10V–30V input, with built-in internal current limiting and thermal shutdown for robust, essentially indestructible operation. Ideal for on-card voltage regulation, noise elimination, and as a replacement for Zener diode/resistor combinations in power supply, embedded, and industrial circuit designs.

Key Specifications

• MPN: L78L05CD13TR
• Manufacturer: STMicroelectronics
• Type: Fixed Positive Linear Voltage Regulator (7805 Series)
• Package: SOIC-8 (SMD)
• Output Voltage: 5V (Fixed)
• Input Voltage Range: 10V – 30V
• Max Output Current: 100mA
• Number of Outputs: 1
• Protections: Internal Current Limiting, Thermal Shutdown
• Operating Temperature Max: +125°C
• Mounting Style: SMD (Surface Mount)

Package Includes

• 1 x L78L05CD13TR 5V 100mA Linear Voltage Regulator SOIC-8 - STMicroelectronics

Note: Image is for representation purpose only.
