Hi-Link HLK-10M05 5V 2A 10W AC to DC Power Supply Module

Datasheet

The Hi-Link HLK-10M05 is a compact, isolated AC-DC switching power supply module that delivers 5V DC output at up to 2A from a universal 100–240V AC input. With a 10W power rating and high efficiency up to 96%, it is ideal for embedded systems, automation equipment, IoT devices, and smart home applications.

Designed for direct PCB mounting, this module features 3000V isolation between input and output, built-in overload and short circuit protection, and low no-load power consumption (<0.1W). Its compact size and high integration reduce external component requirements, making it suitable for space-constrained designs.

Key Specifications:
Model: HLK-10M05
Input Voltage: 100V – 240V AC
Output Voltage: 5V DC
Maximum Output Current: 2A
Output Power: 10W
Efficiency: Up to 96%
Isolation Voltage: 3000V AC
Operating Temperature: -25°C to +60°C
Mounting Type: PCB Mount

Package Includes:
1 x Hi-Link HLK-10M05 5V 10W AC-DC Power Supply Module

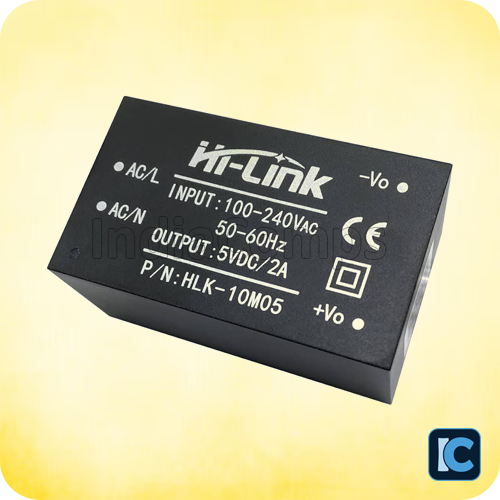

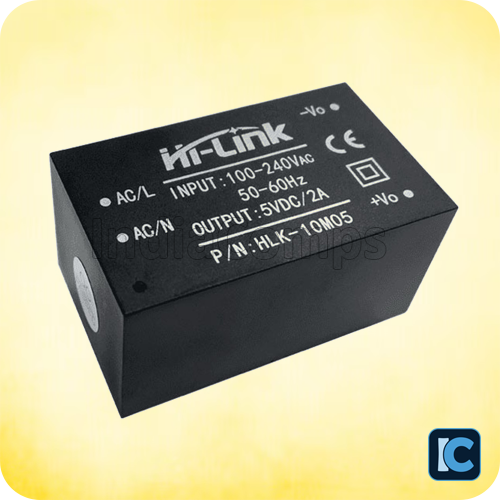

Note: Image is for representation purpose only.
