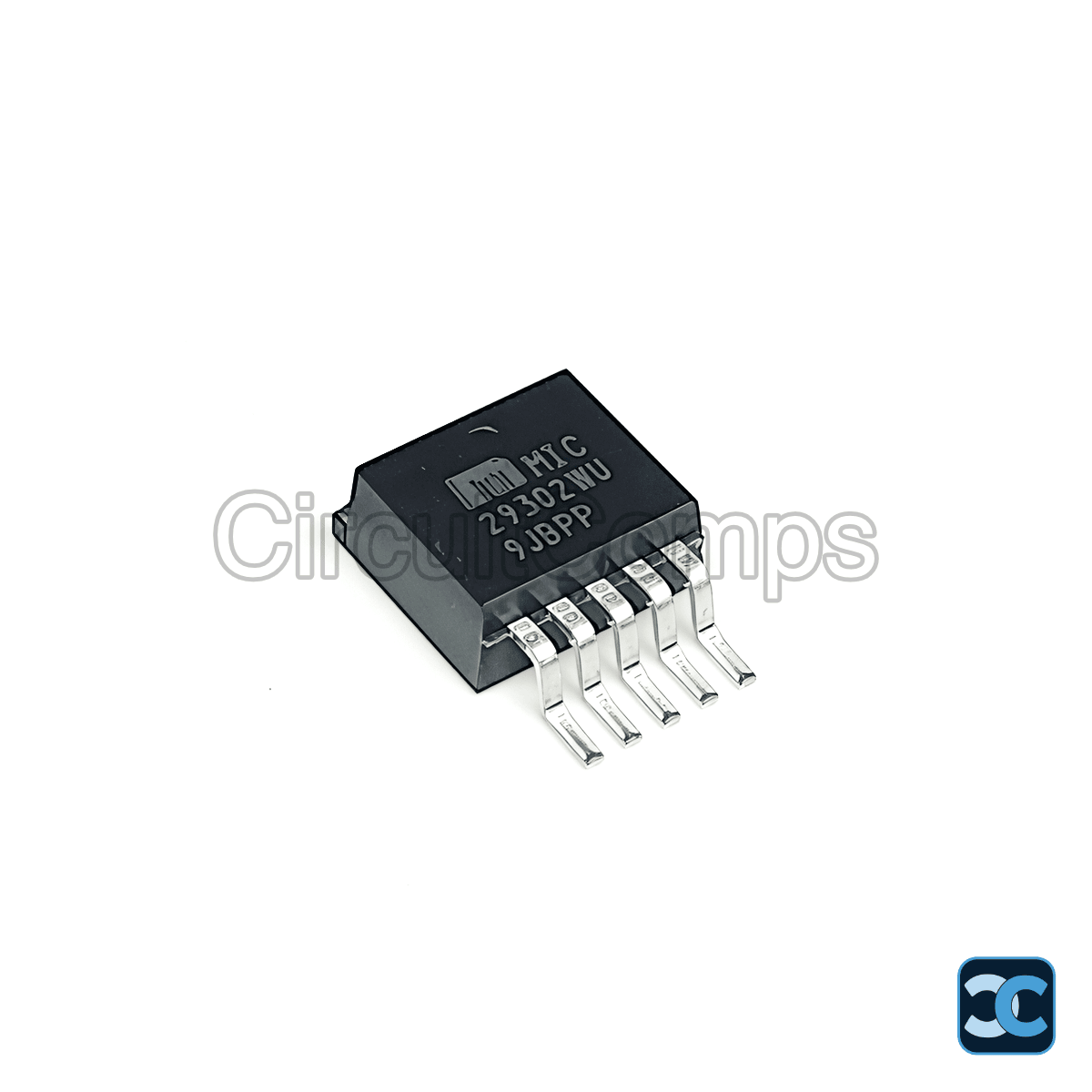

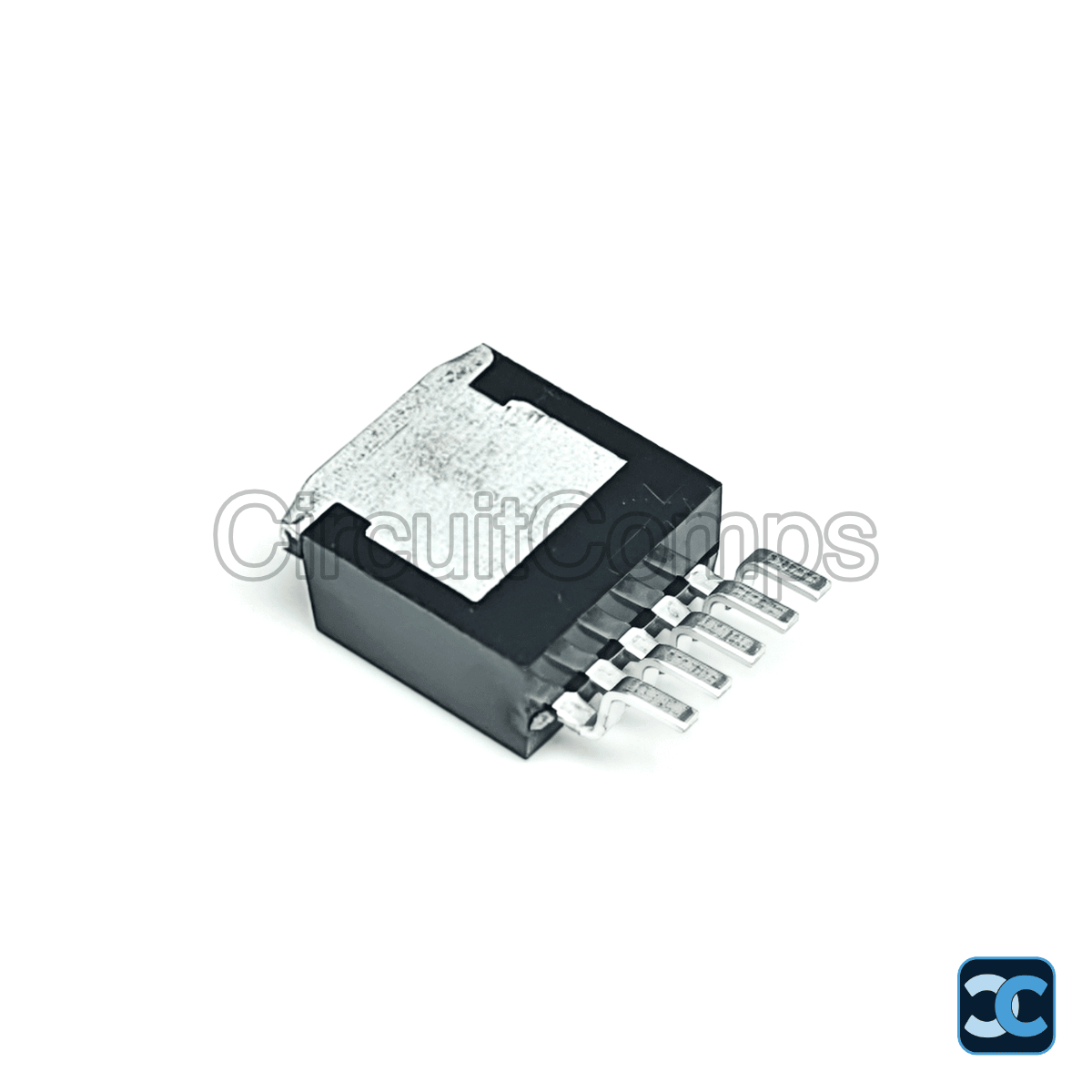

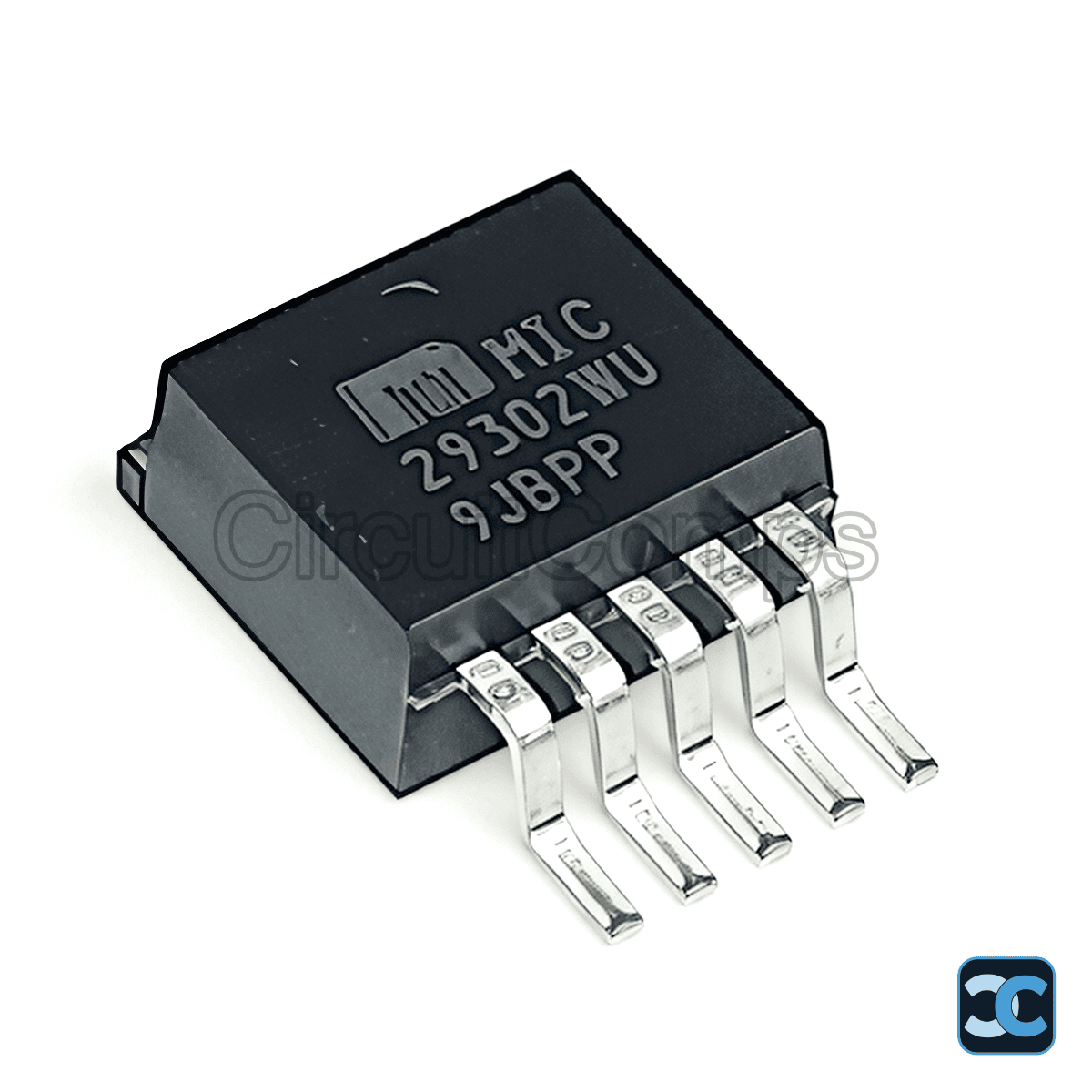

MIC29302WU-TR Microchip 3A LDO Adjustable Voltage Regulator TO-263-5

The MIC29302WU-TR from Microchip is a high-current, low-dropout (LDO) adjustable voltage regulator built on Microchip's proprietary Super Beta PNP process. Delivering up to 3A output current with a dropout voltage of just 350mV–425mV at full load, it is ideal for high-current power rails, battery-powered systems, and low-dropout critical applications in industrial, automotive, and embedded electronics. Its adjustable output (1.25V to 25V), fast transient response, and comprehensive protection suite make it a robust and versatile power management solution.

Key Specifications

• Part Number: MIC29302WU-TR
• Manufacturer: Microchip
• Type: LDO Adjustable Linear Voltage Regulator
• Max Output Current: 3A
• Operating Input Voltage: 3V to 26V
• Adjustable Output Voltage: 1.25V to 25V
• Dropout Voltage: 350mV to 425mV (full load)
• Output Accuracy: ±2% (over temperature, line & load)
• Package: TO-263-5L
• Operating Temperature: -40°C to +125°C
• Protections: Overcurrent, Reverse Polarity, Reverse Lead Insertion, Over-Temperature, Transient Voltage Spikes
• Enable Pin: TTL/CMOS Logic (EN)
• Weight: 3.04 g

Package Includes

• 1 x MIC29302WU-TR Microchip 3A LDO Adjustable Voltage Regulator TO-263-5

Note: Image is for representation purpose only.
