DW01A Lithium Battery Protection IC | SOT23-6 Single-Cell Li-ion Protection

The DW01A is a highly reliable single-cell lithium-ion/lithium-polymer battery protection IC designed to safeguard battery packs from damage caused by overcharge, over-discharge, overcurrent, and short circuit conditions. Widely used in mobile devices, battery-powered electronics, and Li-ion protection boards, the DW01A ensures safe charging and discharging to extend battery lifespan.

With built-in high-precision detection circuits and extremely low quiescent current, the DW01A provides stable and efficient protection while minimizing energy loss. Its compact SOT23-6 package makes it ideal for integration directly within small battery packs and space-limited protection modules.

Features / Specifications

• IC Type: Lithium Battery Protection IC

• Model: DW01A

• Package: SOT23-6

• Battery Type: Single-cell Li-ion / Li-polymer

• Overcharge Protection Voltage: 4.30V

• Over-Discharge Protection Voltage: 3.0V

• Short Circuit Protection Voltage: 1.2V

• Quiescent Current: ~3 µA (typ. @ 3.6V)

• Over-Discharge Current: ~4 µA (typ. @ 1.8V)

• Two-level Overcurrent Protection

• Internal delay time circuitry (no external capacitors required)

• Miniature package for compact designs

• Ideal For:

  • Li-ion battery packs

  • Power banks

  • Battery protection circuits

  • Portable electronics

  • Rechargeable battery products

Package Includes:

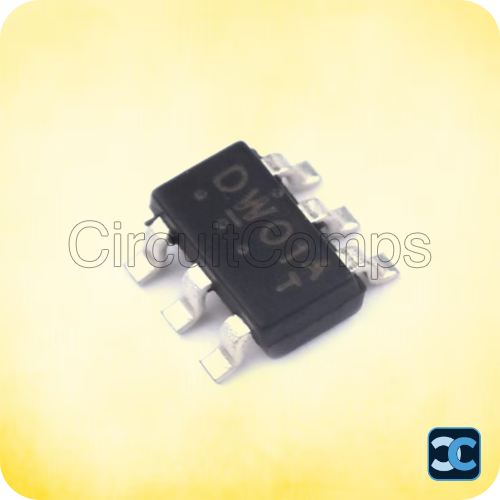

1 × DW01A Lithium Battery Protection IC – SOT23-6

Note: Product images are for representation purposes only.
