LM358ADR IC – Dual Operational Amplifiers – SOIC-8 – Texas Instruments (TI)

The LM358ADR from Texas Instruments is a dual operational amplifier designed for low-power, high-performance analog signal processing. With a wide supply voltage range of 3V to 36V, low quiescent current, and unity-gain bandwidth of 1.2 MHz, it offers reliable performance across industrial, consumer, and embedded electronics.

This op-amp includes a ground-sensing input stage that allows accurate low-side measurements, making it suitable for sensor interfaces, power supplies, control circuits, and motor-drive systems. Packaged in a compact SOIC-8, the LM358ADR is ideal for space-constrained PCB designs.

Features / Specs

• Supply Voltage Range: 3V to 36V

• Quiescent Current: 300 μA per channel

• Unity-Gain Bandwidth: 1.2 MHz

• Common-Mode Input Voltage Range includes ground

• Input Offset Voltage (max @ 25°C): 3 mV

• Input Bias Current: 20 nA (typ.), 250 nA (max)

• Output Saturation Voltage: 500 µV typical

• Operating Temperature: −40°C to +85°C

• ESD Protection (HBM): 2 kV

• Package: SOIC-8

• Manufacturer: Texas Instruments (TI)

Applications

• Power supplies and voltage regulation circuits

• Motor control systems (AC, DC, BLDC, stepper)

• Industrial automation and control

• Household appliances and HVAC systems

• UPS and inverter systems

• Sensor signal conditioning

• Embedded and computing hardware

Package Includes

1 × LM358ADR Dual Operational Amplifier – SOIC-8

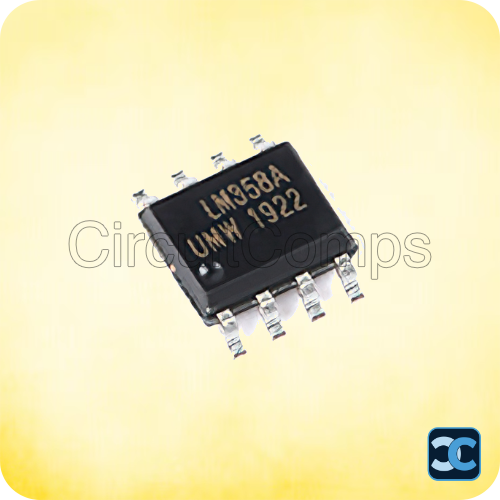

Note: Product images are for representation purposes only and may differ from the actual product.
