MCP6002T-I/SN Dual Rail-to-Rail Op-Amp – Low Power, 1MHz, SOIC-8

The Microchip MCP6002T-I/SN is a low-power, dual operational amplifier featuring rail-to-rail input and output, ideal for precision analog and battery-powered applications. Operating from a wide 1.8V to 6V supply range, it delivers stable performance with a 1 MHz gain bandwidth product and a 0.6 V/µs slew rate, making it suitable for sensor conditioning, active filtering, and general signal amplification.

Each amplifier draws only 100 µA typical quiescent current, enabling highly efficient portable designs. The device is fully unity-gain stable, supports up to 500 pF capacitive loads, and meets AEC-Q100 automotive qualification standards.

Packaged in a compact SOIC-8 surface-mount form factor, the MCP6002 provides a cost-effective and robust solution for low-voltage analog circuitry.

Key Features:

• Dual general-purpose op-amp

• Rail-to-rail input and output

• Wide supply range: 1.8V to 6V

• Low quiescent current: 100 µA per amplifier (typ.)

• 1 MHz gain bandwidth product

• 0.6 V/µs slew rate

• Ultra-low input bias current: 1 pA

• Input offset voltage: 4.5 mV typ.

• Unity-gain stable

• AEC-Q100 automotive qualified

• Package: SOIC-8 (Surface Mount)

Package Includes:
1X MCP6002T-I/SN Operational Amplifier

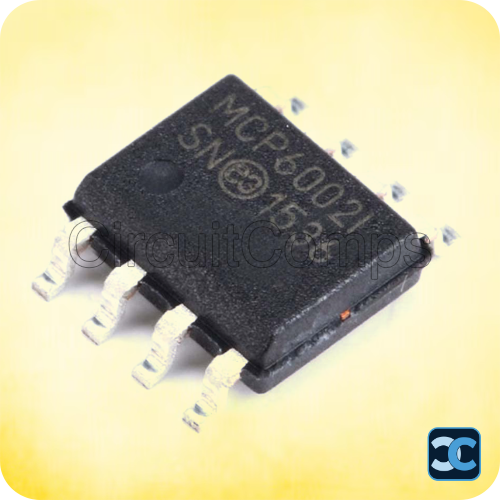

Note: Image is for representation purposes only.
