MCP6004T-I/SL Quad Op-Amp – Rail-to-Rail, 1MHz, Low-Power SOP-14

The MCP6004T-I/SL is a low-power, general-purpose quad operational amplifier from Microchip Technology, designed for precision analog signal conditioning in low-voltage systems. With a 1 MHz gain bandwidth product, 0.6 V/µs slew rate, and rail-to-rail input/output, this device delivers reliable performance across a wide variety of analog processing applications.

Operating from a 1.8V to 6V supply range, the MCP6004 is ideal for battery-powered and portable products. Each amplifier consumes only 100 µA (typ.), enabling energy-efficient designs. Its quad-channel architecture provides four independent op-amps in a compact 14-pin SOP package, making it suitable for multi-channel signal conditioning, filtering, buffering, and sensing circuits.

Rated for operation from -40°C to +85°C and AEC-Q100 qualified, the MCP6004T-I/SL is designed for robust and reliable use in automotive, consumer, and industrial systems.

Key Features:

• Quad low-power operational amplifier

• Rail-to-rail input and output operation

• 1 MHz gain bandwidth product

• 0.6 V/µs slew rate

• Ultra-low input bias current: 1 pA

• Low quiescent current: 100 µA per channel (typ.)

• Wide supply range: 1.8V to 6V

• Automotive grade (AEC-Q100 qualified)

• Unity-gain stable; supports up to 500 pF capacitive load

• Package: SOP-14 (Surface Mount)

Package Includes:
1X MCP6004T-I/SL Quad Operational Amplifier

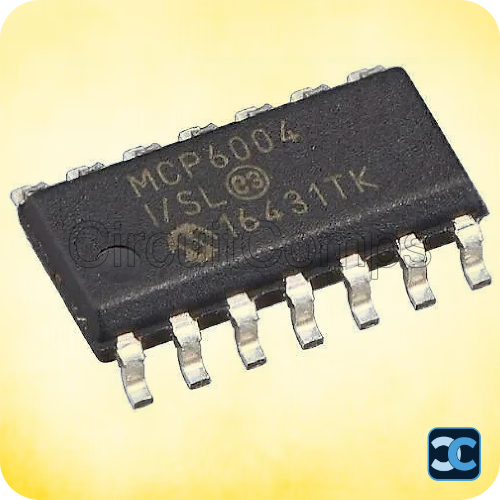

Note: Image is for representation purposes only.
