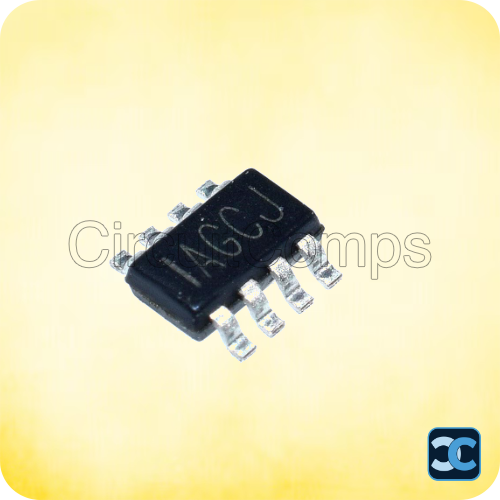

MP2315GJ-Z 3A Synchronous Buck Regulator – 24V Input – MPS – TSOT-23-8

The MP2315GJ-Z from Monolithic Power Systems (MPS) is a compact, high-efficiency 3A synchronous buck regulator designed for wide input voltage applications up to 24V. With an integrated pair of low-Rds(on) MOSFETs (90mΩ high-side / 40mΩ low-side), this regulator delivers excellent power efficiency and reduced heat generation, making it ideal for space-constrained and high-performance power designs.

Operating at a fixed 500kHz switching frequency (synchronizable from 200kHz to 2MHz), the MP2315 enables small external components and fast transient response. Its current-mode control architecture simplifies compensation and ensures stable operation across varying loads. The device provides robust protections, including over-current protection (OCP) and thermal shutdown.

Typical applications include industrial controls, battery-powered systems, automotive accessories, set-top boxes, sensors, communications equipment, and general-purpose DC-DC power regulation.

Features / Specs

• Input Voltage Range: 4.5V to 24V

• Output Voltage: 0.8V up to VIN × DV (design-dependent)

• Output Current: Up to 3A continuous

• Integrated MOSFETs:

  • 90mΩ high-side

  • 40mΩ low-side

• Switching Frequency: 500kHz fixed (sync 200kHz–2MHz)

• Quiescent Current: Low, for high efficiency at light load

• Control Scheme: Current-mode PWM

• Protections:

  • Over-current protection (OCP)

  • Thermal shutdown

• Operating Junction Temp: −40°C to +125°C

• Package: TSOT-23-8

• MPN: MP2315GJ-Z

• Manufacturer: Monolithic Power Systems (MPS)

Package Includes

1 × MP2315GJ-Z 3A Synchronous Buck Regulator – TSOT-23-8

Note: Product images are for representation purposes only and may differ from the actual product.
