OP07CDR Precision Low-Offset Operational Amplifier – SOIC-8 – Texas Instruments

The OP07CDR from Texas Instruments is a high-precision operational amplifier designed for applications requiring extremely low input offset voltage and low drift. With an offset voltage of typically 150 µV, low bias current, and excellent long-term stability, this device is ideal for precision analog signal conditioning.

The amplifier supports a wide dual-supply range from ±3 V to ±22 V, and can also operate from a single supply. It offers a 600 kHz gain-bandwidth product, 0.3 V/µs slew rate, and low noise performance, making it suitable for sensor amplification, instrumentation, data acquisition, and high-accuracy measurement circuits.

Packaged in a compact SOIC-8 surface-mount form, the OP07CDR delivers low power consumption and reliable operation within the 0°C to +70°C commercial temperature range.

Key Specifications:

• Ultra-low input offset voltage: 150 µV (max)

• Wide dual-supply operation: ±3 V to ±22 V

• Gain-Bandwidth Product: 600 kHz

• Slew Rate: 0.3 V/µs

• Low input bias current: 1.8 nA

• Low noise: 10 nV/√Hz at 1 kHz

• Commercial temperature range: 0°C to +70°C

• Package: SOIC-8 (SMD)

Package Includes:
1X OP07CDR Precision Operational Amplifier

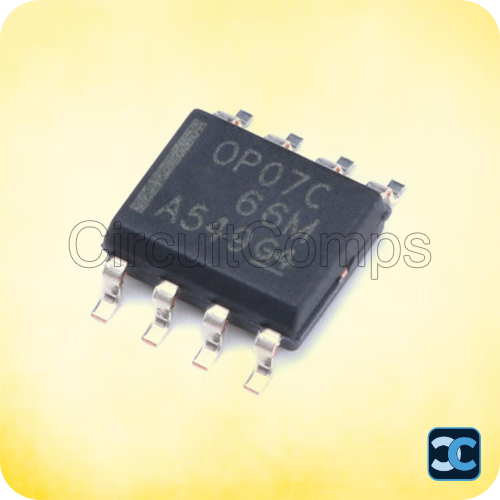

Note: Image is for representation purposes only.
