TLC272CDR Dual CMOS Precision Op-Amp – Low Power – SOIC-8 – TI

The Texas Instruments TLC272CDR is a dual-channel, low-power LinCMOS™ precision operational amplifierdesigned for high-accuracy analog signal processing. With ultra-low input bias currents and a wide supply voltage range, it is ideal for precision sensing, buffering, filtering, and low-power analog applications.

Operating from a single supply of 3V to 16V, the TLC272CDR delivers excellent stability with a 1.1mV typical input offset voltage, 0.7pA input bias current, and a 2.2MHz gain bandwidth product (GBP). Its 5.3V/µs slew rateenables fast and accurate signal response, making it suitable for both low-frequency and moderate-speed analog circuits.

Built using TI’s LinCMOS™ technology, the TLC272 offers improved offset stability and exceptional latch-up immunity. Packaged in a compact SOIC-8 (3.9mm width) surface-mount package, this dual op-amp integrates easily into space-constrained designs.

Key Specifications:

• Amplifier Type: CMOS, low-offset dual op-amp

• Channels: 2

• Supply Voltage: 3V to 16V (single supply)

• Input Offset Voltage: 1.1mV (typical)

• Input Bias Current: 0.7pA (typical)

• GBP: 2.2MHz

• Slew Rate: 5.3V/µs

• Output Current: 30mA per channel

• Operating Temperature: 0°C to +70°C

• Package: SOIC-8 (surface mount)

Applications:
Active filters, precision buffers, signal conditioning, transducer interfacing, instrumentation circuits, and battery-powered analog systems.

Package Includes:
1 x TLC272CDR Dual CMOS Precision Op-Amp IC

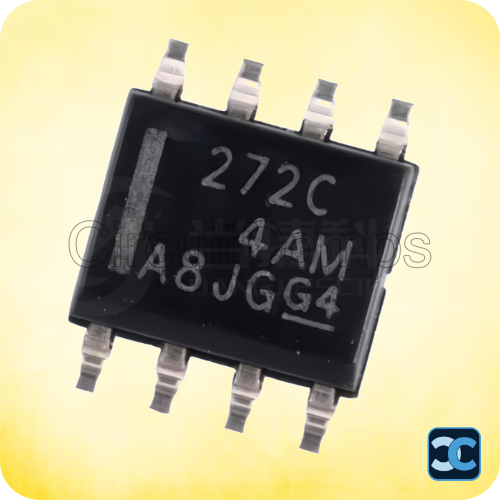

Note: Image is for representation purpose only.
