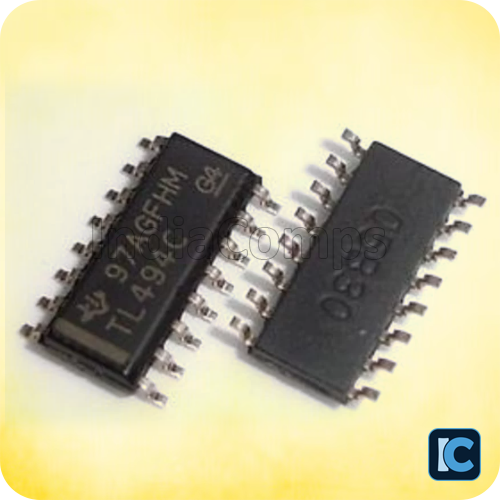

TL494CD PWM Controller IC – Texas Instruments – SOIC-16 Package
The TL494CD from Texas Instruments is a versatile PWM (Pulse Width Modulation) controller IC designed for switching power supplies and motor control applications. It operates with a wide supply voltage range of 7V to 40V and can handle switching frequencies up to 300 kHz, making it suitable for high-efficiency power management designs.
🔹 Key Features:
-
Manufacturer: Texas Instruments
-
Package: SOIC-16 (SOP-16)
-
Operating Voltage: 7V to 40V supply range
-
Switching Frequency: Up to 300 kHz
-
Number of Outputs: 2
-
Output Current: Up to 200 mA
-
Operating Temperature Range: 0°C to +70°C
-
External switch transistor required (no built-in switch)
-
No synchronous rectifier function
📦 Package Includes:
-
1 × TL494CD PWM Controller IC (SOIC-16 Package)
🖼️ Note:
Product images are for reference only and may differ from the actual product.
📄 Related Documents:
Please refer to the TL494 datasheet attached for detailed technical specifications and application guidelines.
