The LNK304PN by Power Integrations is a high-efficiency off-line switcher IC that combines an integrated high-voltage MOSFET with advanced EcoSmart® energy-saving features. Designed for low-power AC-DC applications, this IC is the perfect choice for compact, reliable, and energy-efficient power supplies such as mobile chargers and adapters.

Key Features

• Integrated High-Voltage MOSFET: Reduces external components and simplifies circuit design.

• EcoSmart Technology: Delivers ultra-low standby power consumption for increased energy savings.

• Robust Protection Circuitry: Built-in overvoltage, overcurrent, and thermal shutdown for system reliability.

• Efficient Power Conversion: Optimized for low-power off-line applications.

• Compact Form Factor: DIP-7 package supports space-constrained designs.

Technical Details

• Part Number: LNK304PN

• Manufacturer: Power Integrations

• Package Type: DIP-7

• Mounting Type: Through Hole

• Application: Chargers, adapters, low-wattage power supplies

Applications

• Mobile and USB chargers

• Low-power adapters

• Standby power supplies

• Consumer electronics

Package Includes

• 1 × LNK304PN – Off-line Switcher IC (DIP-7 Package, Power Integrations)

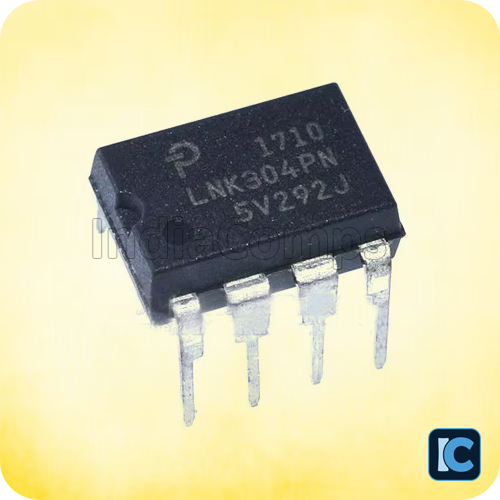

Image is for representation purpose only.
