VIPer22A – SMPS 20W SMART Primary Switcher IC – DIP-8 – STMicroelectronics

The VIPer22A by STMicroelectronics is a high-performance primary switcher IC engineered for Switched-Mode Power Supplies (SMPS). This monolithic device combines a current-mode PWM controller with a 730V avalanche-rugged Power MOSFET on a single chip, packaged in a standard DIP-8 format. It is ideal for creating compact, efficient, and cost-effective offline AC-DC power converters up to 20W.

An integrated high-voltage startup circuit eliminates the need for external high-power bleed resistors, reducing standby power consumption and saving PCB space. The feedback pin connects directly to an optocoupler, simplifying the regulation loop and minimising component count. Built-in protections and ultra-low standby power consumption help meet global energy efficiency regulations.

Key Specifications

• Manufacturer: STMicroelectronics
• Part Number: VIPer22A
• Package: DIP-8 (Through-Hole)
• Output Power: 20W (open frame) / 12W (enclosed)
• Drain-Source Voltage (VDSS): 730V max
• Switching Frequency: 60 kHz (fixed)
• Supply Voltage Range (VDD): 9V – 38V
• Control Mode: Current-Mode PWM
• Mounting Type: Through-Hole

Package Includes

• 1 x VIPer22A SMPS 20W Smart Primary Switcher IC DIP-8

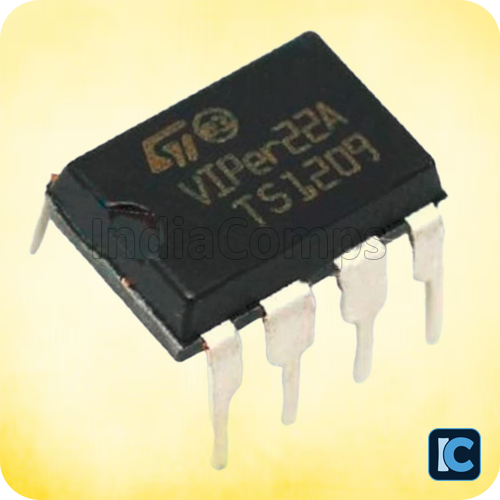

Note: Image is for representation purpose only.
