ABS10 1A 1kV SMD Diode Bridge Rectifier

Product Description:

The ABS10 1A 1kV SMD Diode Bridge is a compact and reliable full-wave rectifier designed for efficient AC-to-DC conversion in power supplies and electronic circuits. With a 1A current rating and 1000V (1kV) reverse voltage, it is suitable for high-voltage, low-profile applications where space and performance are critical.

Housed in a robust ABS (SMD) package, the ABS10 offers excellent thermal stability, fast switching performance, and long-term reliability. It is widely used in AC input rectification, LED drivers, chargers, adapters, industrial controls, and compact power modules.

Key Specifications:

• Type: SMD Bridge Rectifier

• Model: ABS10

• Max Forward Current: 1A

• Peak Reverse Voltage: 1000V (1kV)

• Package: ABS (Surface-Mount)

• Configuration: Full-wave bridge

• Mounting: SMD

• Forward Voltage: Low for high efficiency

• High surge capability

Features:

• Compact SMD bridge rectifier for space-saving designs

• High voltage rating suitable for universal AC inputs

• Low power loss and high efficiency

• Excellent thermal performance

• Compatible with automated SMT production

• Ideal for high-density PCB layouts

Applications:

• AC–DC power supplies

• LED lighting and drivers

• Battery chargers

• Small appliances and adapters

• Industrial control circuits

• General-purpose rectification

Package Includes:

1 × ABS10 1A 1kV SMD Diode Bridge

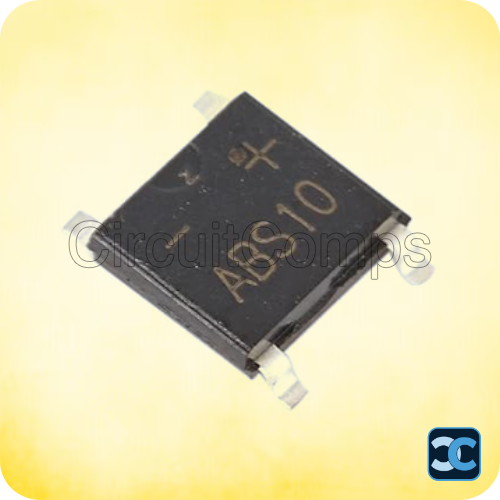

Note: Image is for representation purpose only.
