🔋 BZX85C12 – 12V 1W Zener Diode | DO-41 Package | onsemi

The BZX85C12 from onsemi is a high-performance 12V Zener diode designed for precision voltage regulation in power management applications. With a 1W power dissipation and 5% tolerance, this diode is ideal for protecting sensitive electronic circuits against overvoltage.

Encased in a DO-41 through-hole package, it supports up to 200°C operation, making it perfect for robust and high-temperature environments.

✅ Key Features

• Zener Voltage: 12V (±5% tolerance)

• Power Dissipation: 1W

• Zener Type: Voltage Regulator

• Mounting Type: Through Hole (2-Pin)

• Package Type: DO-41

• Test Current: 20mA

• Max Zener Impedance: 9Ω

• Max Reverse Leakage Current: 500nA

• Dimensions: 2.72mm (Dia.) x 5.2mm

• Temperature Range: -65°C to +200°C

• Configuration: Single diode element

🧰 Applications

• Voltage regulation circuits

• Overvoltage protection

• Power supplies and battery-powered devices

• Clamping applications

• Signal conditioning in embedded systems

📦 Package Includes

• 1 × BZX85C12 – 12V Zener Diode (1W, DO-41 Package, onsemi)

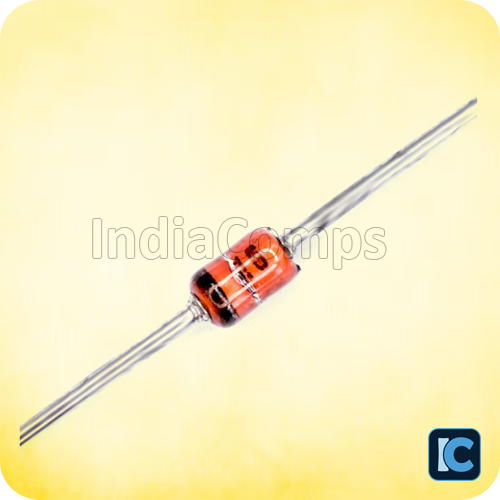

Image is for representation purpose only.
