DB107S 1A 1000V SMD Bridge Rectifier – Compact AC–DC Converter

Product Description:

The DB107S SMD Diode Bridge is a compact and reliable 1A full-wave bridge rectifier designed for efficient AC-to-DC conversion in low-power and space-constrained electronic applications. With a 1000V peak reverse voltage, this device ensures stable performance in a wide range of consumer, industrial, and embedded circuits.

Its integrated 4-diode bridge configuration simplifies PCB design and reduces component count, making it ideal for chargers, LED drivers, adapters, SMPS modules, and general-purpose power supplies. The SMD package allows for automated assembly while maintaining excellent electrical and thermal performance.

Key Specifications:

• Model: DB107S

• Type: Full-Wave Bridge Rectifier

• Package: SMD

• Forward Current (IF): 1A

• Peak Reverse Voltage (VRRM): 1000V

• Surge Current: Good capability for small power loads

• Forward Voltage Drop: Low for efficient rectification

• Mounting Type: Surface Mount (SMD)

• Configuration: Integrated 4-diode bridge

Features:

• Compact SMD package for dense PCB layouts

• Reliable 1A current handling

• High 1000V reverse voltage rating

• Low forward voltage drop for better efficiency

• Full-wave rectification in a single device

• Ideal for automated SMT assembly

Applications:

• AC–DC conversion

• LED drivers and small power supplies

• Mobile and embedded chargers

• SMPS and adapter circuits

• IoT and consumer electronics

• Control and instrumentation modules

Package Includes:

1 × DB107S 1A 1000V SMD Bridge Rectifier

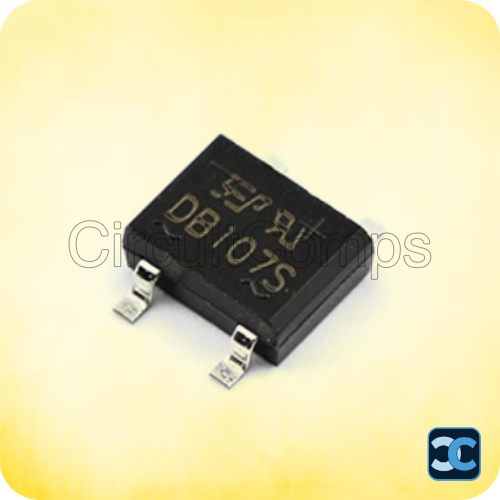

Note: Image is for representation purpose only.
