DB207S SMD 2A 1000V Diode Bridge Rectifier – Compact AC-DC Converter

Product Description:

The DB207S Diode Bridge Rectifier is a compact and reliable 2A SMD bridge module designed for efficient AC-to-DC conversion in a wide range of electronic applications. With a high 1000V peak reverse voltage rating, this bridge rectifier ensures stable and safe operation even in demanding high-voltage circuits.

The integrated full-wave bridge design combines four rectifier diodes into a single SMD package, simplifying PCB layout and reducing component count. Its compact footprint makes it ideal for power adapters, LED drivers, battery chargers, SMPS circuits, and compact embedded power systems.

Key Specifications:

• Model: DB207S

• Type: Full-Wave Bridge Rectifier

• Package: SMD (Surface Mount)

• Forward Current (IF): 2A

• Peak Reverse Voltage (VRRM): 1000V

• Configuration: Integrated 4-diode bridge

• Forward Voltage Drop: Low for efficient rectification

• Mounting Type: SMD

• Thermal Stability: High reliability under continuous load

Features:

• 2A SMD bridge rectifier in a compact package

• High 1000V reverse voltage capability

• Full-wave AC–DC rectification in a single module

• Low power loss and stable performance

• Ideal for space-constrained PCB designs

• High surge and thermal durability

Applications:

• AC–DC power conversion

• LED drivers and lighting systems

• Power adapters and chargers

• Small SMPS modules

• Embedded control systems

• Consumer and industrial electronics

Package Includes:

1 × DB207S 2A SMD Bridge Rectifier

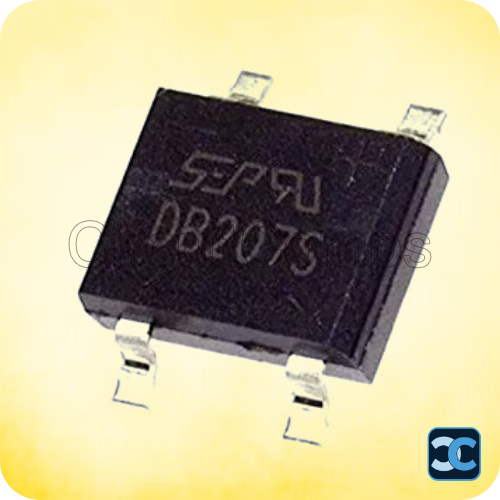

Note: Image is for representation purpose only.
