FR307 Fast Recovery Rectifier Diode – 3A 1000V – DO-27 – Through-Hole – MIC

Product Description:
The FR307 Fast Recovery Rectifier Diode is a high-performance fast-recovery power diode designed for efficient rectification in high-voltage, high-current applications. With a 1kV repetitive peak reverse voltage, 3A average forward current, and 125A surge capability, it delivers reliable performance even under demanding conditions.

Its fast reverse recovery time of 500ns ensures improved switching efficiency, making it ideal for use in switched-mode power supplies, inverters, battery chargers, and motor control circuits. Constructed with a molded plastic case and axial leads, the FR307 offers durability, low reverse leakage, and consistent long-term operation. A polarity marking band clearly indicates the cathode for easy installation.

Key Specifications:

• Repetitive Peak Reverse Voltage (VRRM): 1000V

• Maximum RMS Voltage: 700V

• Average Forward Rectified Current (IF(AV)): 3A

• Instantaneous Forward Voltage (VF): 1.3V @ 3A

• Peak Forward Surge Current (IFSM): 125A

• Reverse Recovery Time (trr): 500ns

• Typical Junction Capacitance: 60pF

• Package: DO-27 (Axial Through-Hole)

• Weight: 1.11g

Features:

• Fast switching for high efficiency

• Low forward voltage drop

• High surge current capability

• Low reverse leakage

• Robust molded DO-27 package

• High reliability construction

• Suitable for high-temperature soldering (260°C for 10s)

Applications:

• Power supplies

• Inverters and converters

• Battery chargers

• Rectification circuits

• Motor control systems

Package Includes:
1 × FR307 Fast Recovery Rectifier Diode (DO-27)

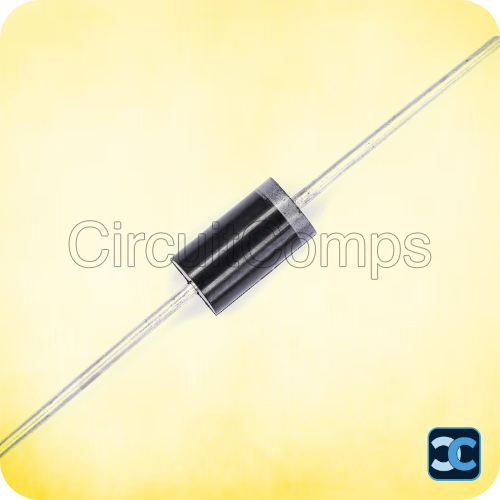

Note: Image is for representation purpose only.
