KBL610 6A 1000V Bridge Rectifier – Full-Wave Diode Bridge

Product Description:

The KBL610 Bridge Rectifier is a high-current, high-voltage 6A full-wave diode bridge designed for robust AC-to-DC conversion in both consumer and industrial power systems. With a 1000V peak reverse voltage rating, this rectifier delivers reliable performance in demanding applications such as power supplies, battery chargers, SMPS circuits, motor controllers, and inverter units.

Housed in the KBL package, the KBL610 offers superior heat dissipation, strong surge current capability, and long-term reliability. It integrates four rectifier diodes into a single compact package, simplifying PCB layout and improving mechanical durability in high-power circuits.

Key Specifications:

• Model: KBL610

• Type: Full-Wave Bridge Rectifier

• Package: KBL (Through-Hole)

• Forward Current (IF): 6A continuous

• Peak Reverse Voltage (VRRM): 1000V

• Surge Current: High capability

• Forward Voltage Drop: Low for efficient rectification

• Mounting Type: Through-hole

• Thermal Performance: Excellent for high-load operation

Features:

• High current capacity (6A)

• 1000V high-voltage withstand capability

• Integrated 4-diode full-wave bridge

• Reliable operation in heavy-duty power systems

• Low forward voltage for improved efficiency

• Durable package suited for industrial applications

Applications:

• AC–DC power supplies

• Battery chargers and adapters

• SMPS and inverter systems

• Motor control units

• Industrial and commercial power circuits

• Solar and energy storage systems

Package Includes:

1 × KBL610 6A 1000V Bridge Rectifier

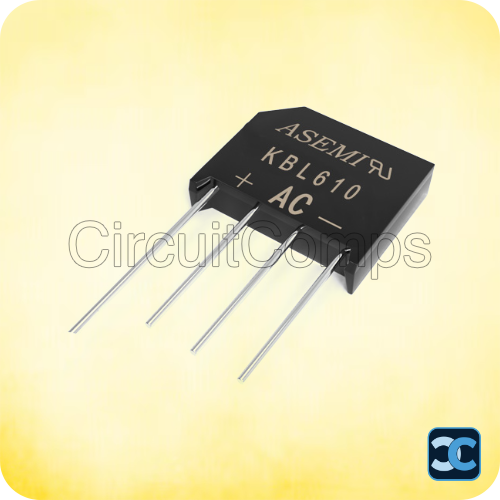

Note: Image is for representation purpose only.
