MB10S 700V 0.8A SMD Bridge Rectifier – Compact Diode Bridge

Product Description:

The MB10S 700V 0.8A SMD Diode Bridge is a compact and efficient full-wave rectifier designed for AC-to-DC conversion in low-power and compact electronic applications. With a 700V reverse voltage rating and 0.8A forward current capability, this SMD diode bridge provides stable and reliable performance for chargers, power adapters, LED drivers, small power supplies, and embedded electronics.

Housed in a space-saving SMD (MB-S) package, the MB10S integrates four rectifier diodes into one unit, reducing PCB space and simplifying circuit design. It offers excellent thermal stability, low forward voltage drop, and dependable operation even under continuous use.

Key Specifications:

• Diode Type: SMD Bridge Rectifier

• Model: MB10S

• Reverse Voltage (VRRM): 700V

• Forward Current (IF): 0.8A

• Peak Forward Surge Current: High surge capability

• Package: MB-S / SMD compact bridge

• Configuration: Full-wave bridge

• Forward Voltage Drop: Low for improved efficiency

• Mounting Type: SMD (Surface Mount)

Features:

• Full-wave rectification in a compact SMD package

• High 700V reverse voltage rating

• Space-saving single-package bridge design

• Low power loss and strong thermal stability

• High reliability for continuous operation

• Ideal for automated SMT assembly

Applications:

• AC-to-DC conversion

• LED drivers and lighting circuits

• Compact power supplies and adapters

• Battery charging systems

• Household electronics and embedded systems

• Low-power industrial and consumer devices

Package Includes:

1 × MB10S 700V 0.8A SMD Diode Bridge

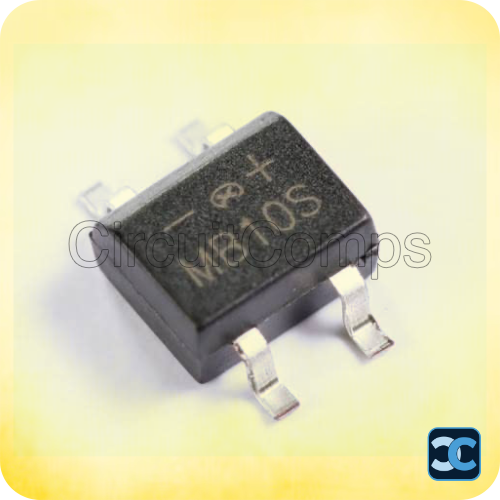

Note: Image is for representation purpose only.
