- SS34 DO-214AB (SMC) Big SMD 3A 40V Schottky Diode SS34 DO-214AB (SMC) Big SMD 3A 40V Schottky Diode

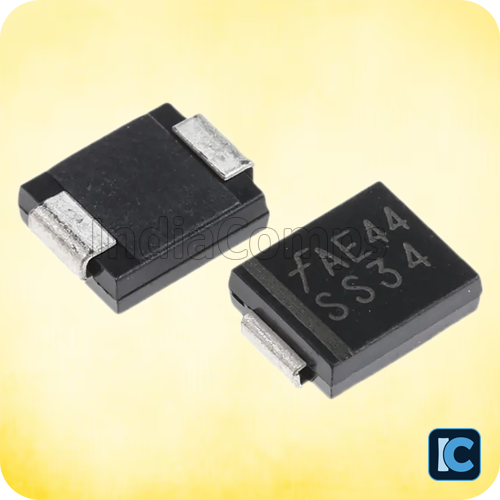

SS34 DO-214AB (SMC) Big SMD 3A 40V Schottky Diode
- Description
- Reviews
✅ Product Description:
The SS34 Schottky Barrier Rectifier is a high-performance, surface-mount diode housed in an SMB (DO-214AC) package. With a maximum reverse voltage of 40V and a forward current capacity of 3A, this diode is ideal for power supply circuits, voltage regulation, and polarity protection in compact PCB designs.
Engineered for low forward voltage drop (typically 0.22V), the SS34 ensures higher efficiency and reduced heat generation in high-frequency switching applications. Its high surge current capability (up to 100A) and fast recovery time make it a reliable choice for DC-DC converters, battery-powered devices, and automotive electronics.
✅ Key Features & Specifications:
-
Diode Type: Schottky Barrier Rectifier
-
Model: SS34
-
Maximum Reverse Voltage (VR): 40V
-
Forward Current (IF): 3A
-
Forward Voltage Drop: 0.22V typical
-
Peak Surge Current: 100A
-
Package Type: SMB (DO-214AC), SMD
-
Operating Temperature Range: -65°C to +150°C
-
Polarity Marked for Easy Installation
-
Ideal for: DC-DC converters, reverse polarity protection, power regulation
