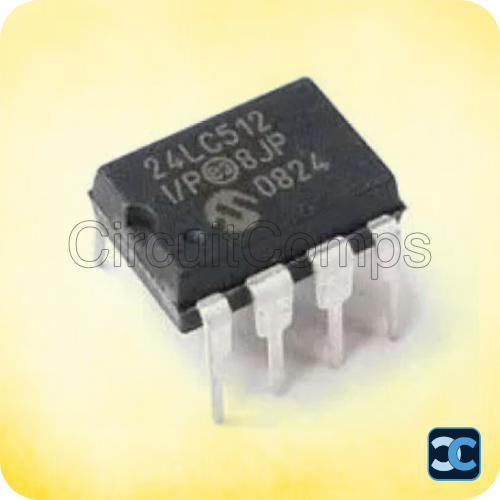

24LC512-I/P 512Kbit I²C Serial EEPROM IC – PDIP-8 – Microchip

The 24LC512-I/P from Microchip is a high-capacity 512 Kbit (64K × 8) serial EEPROM designed for reliable, low-power, non-volatile data storage. Featuring a standard 2-wire I²C-compatible interface, this device offers flexible integration into a wide range of microcontroller-based systems.

Operating from a 2.5V to 5.5V supply, the 24LC512-I/P supports clock frequencies up to 400 kHz, making it suitable for both low-speed and moderate-speed serial communication. It provides exceptional durability with over 1 million write/erase cycles per byte and an impressive 200-year data retention, ensuring long-term reliability for configuration data, logging, calibration storage, identification keys, and more.

Packaged in a standard 8-pin PDIP through-hole form factor, this EEPROM is ideal for breadboard use, prototyping, and robust embedded systems requiring easy hardware handling and long service life.

Key Specifications:

• Manufacturer: Microchip

• Part Number: 24LC512-I/P

• Memory Size: 512 Kbit (64K × 8)

• Memory Type: Serial EEPROM

• Interface: I²C (2-wire)

• Supply Voltage: 2.5V to 5.5V

• Clock Frequency: Up to 400 kHz

• Endurance: >1,000,000 write/erase cycles per byte

• Data Retention: >200 years

• Operating Temperature: –40°C to +85°C

• Package: 8-pin PDIP (through-hole)

Package Includes:
1 x 24LC512-I/P 512Kbit I²C EEPROM IC

Note: Image is for representation purpose only.
