AO3415 – 20V P-Channel MOSFET – SOT-23 – -4A Low RDS(ON) Load Switch Transistor

✅ Product Description:
AO3415 – 20V P-Channel MOSFET – SOT-23 – -4A Low RDS(ON) Load Switch Transistor

The AO3415 is a compact and efficient P-Channel MOSFET designed using advanced trench technology, delivering low on-state resistance and low gate charge for optimal switching performance. Housed in a small SOT-23 surface-mount package, this MOSFET is ideal for space-constrained designs and load switch applications.

With a drain-source voltage rating of -20V, a continuous drain current of -4A, and a gate-source voltage tolerance of ±8V, the AO3415 performs reliably in low-voltage switching tasks. It is optimized for logic-level gate drives as low as 1.8V, making it a perfect fit for battery-powered circuits, power management systems, and mobile devices.

Key Features:

• Transistor Type: P-Channel MOSFET

• Drain-Source Voltage (VDS): -20V

• Gate-Source Voltage (VGS): ±8V

• Continuous Drain Current (ID): -4A

• Low RDS(ON): Optimized for power efficiency

• Gate Drive: Operates with gate voltages down to 1.8V

• Package: SOT-23 (SMD)

• Mounting Type: Surface Mount (SMD)

Applications:

• Load switch circuits

• Battery-powered devices

• Power management modules

• DC switching applications

• General low-voltage switching

Technical Identifiers:
Manufacturer Part Number: AO3415
TME Symbol: AO3415

Package Includes:
1 x AO3415 – 20V P-Channel MOSFET (SOT-23 Package)

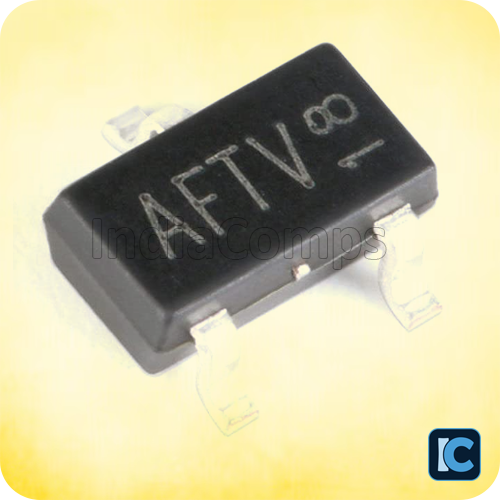

🖼️ Note: Image is for representation purpose only.
