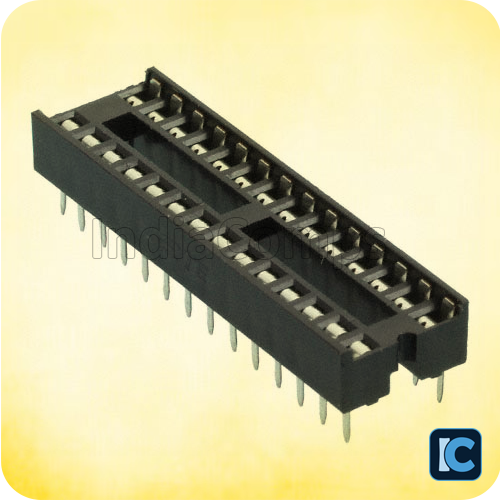

28 Pin DIP IC Base/Socket
- Description
- Return & Refund Policy
- Reviews
The 28-Pin DIP IC Socket is designed to provide a secure and removable interface for DIP (Dual Inline Package) integrated circuits. It is ideal for prototyping, testing, and protecting ICs from heat damage during soldering. Made from durable black thermoplastic with tin-plated alloy contacts, this socket ensures excellent conductivity and reliability in electronic circuits.
This socket allows you to insert and remove ICs without repeated soldering, making your circuits easier to maintain and upgrade. The socket features 2.54mm pin pitch, 7.62mm row spacing, and a notched end for easy pin-1 identification, making it compatible with standard 28-pin DIP ICs.
Key Features:
-
Total Pins: 28 (14 on each side)
-
Socket Type: DIP (Dual Inline Package)
-
Pin Pitch: 2.54 mm (0.1 in)
-
Row Pitch: 7.62 mm (0.3 in)
-
Height Above PCB: 4.8 mm
-
PCB Hole Diameter: 0.6 mm
-
Material: Black Thermoplastic body with Tin-plated Alloy contacts
-
Notched end for easy IC orientation (Pin 1)
-
Stackable end-to-end for longer ICs
Applications:
-
Ideal for testing and prototyping with DIP ICs
-
Prevents damage to ICs from direct soldering
-
Enables easy replacement or reuse of ICs
-
Suitable for Perf boards, custom PCBs, and embedded electronics projects
Benefits:
-
Protects ICs from heat during soldering
-
No need to directly solder ICs
-
Reusable and easy to install
-
Improves circuit maintainability and serviceability
Package Includes:
-
1 × 28-Pin DIP IC Socket/Base
Note: Image shown is for representation only.
