MC33164D-5R2G Voltage Supervisory IC 5V SOIC-8 onsemi

The MC33164D-5R2G from onsemi is a voltage supervisory IC designed to monitor power supply levels and provide reliable undervoltage detection for electronic systems. It ensures proper system reset or control action when the monitored voltage falls below the specified threshold.

This device features a typical threshold voltage of approximately 5V with undervoltage detection around 4.33V and overvoltage detection around 4.45V. It offers open-collector output configuration for flexible interfacing with microcontrollers and digital logic circuits. With low operating supply current of approximately 32µA, it provides efficient power monitoring with minimal power consumption.

Housed in a compact SOIC-8 surface-mount package, the MC33164D-5R2G is widely used in power supply monitoring, embedded systems, industrial electronics, automotive control units, and microcontroller-based designs requiring reliable voltage supervision.

Package Includes:
1 x MC33164D-5R2G Voltage Supervisory IC 5V SOIC-8 onsemi

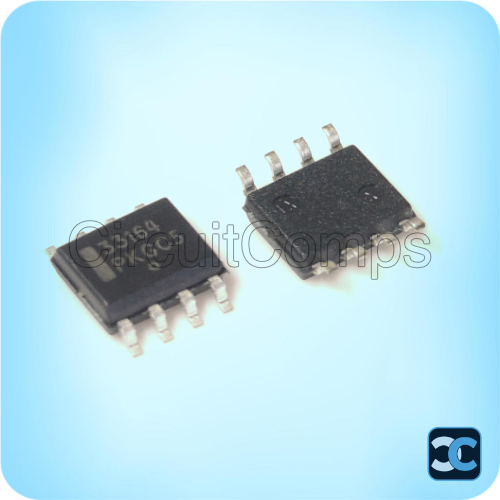

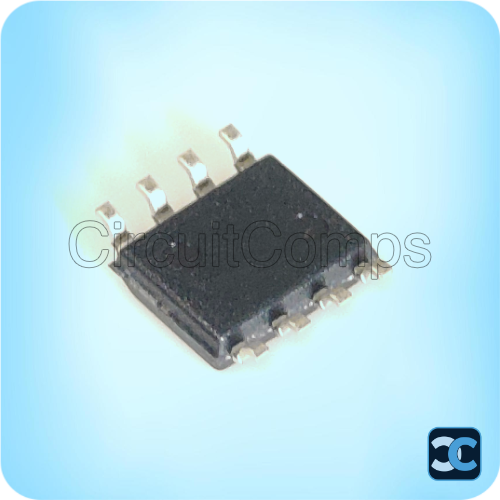

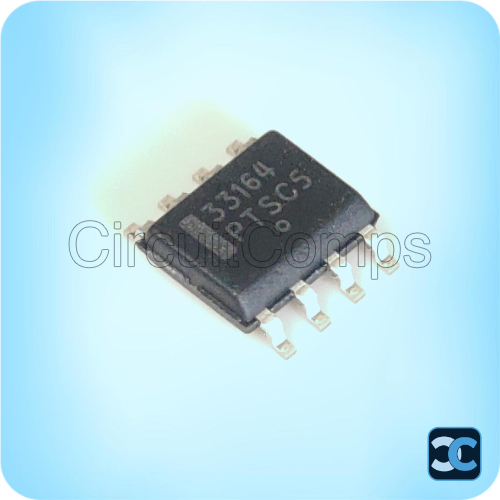

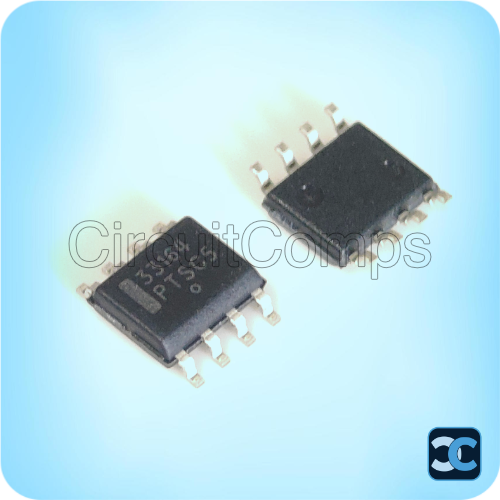

Note: Image is for representation purpose only.
