74HC125D,653 NEXPERIA Quad Buffer Line Driver – SOIC-14 – 2V to 6V CMOS Logic IC

✅ Product Description:

74HC125D,653 NEXPERIA Quad Buffer Line Driver – SOIC-14 – 2V to 6V CMOS Logic IC

The 74HC125D,653 from Nexperia is a high-speed CMOS quad buffer/line driver with 3-state outputs. Each buffer is independently controlled by output-enable pins, allowing flexible signal control in digital systems. This IC supports a wide voltage range from 2V to 6V and is ideal for signal interfacing, microcontroller I/O expansion, and voltage-level translation.

Built with clamp diodes for input protection and offering excellent ESD protection, the 74HC125D operates efficiently in temperatures from -40°C to +125°C. It's packaged in a compact SOIC-14 form, making it easy to use in compact PCB layouts.

Key Features:

• Logic Type: Non-Inverting Buffer / Line Driver

• Logic Family: 74HC125

• Package: SOIC-14

• Voltage Range: 2V – 6V

• ESD Protected, CMOS Input Compatible

• Wide Operating Temperature: -40°C to +125°C

• Application: Microcontroller interface, signal buffer, I/O extension

Applications:

• Digital logic systems

• Signal transmission

• Microcontroller interfacing

• Voltage level shifting

• General-purpose buffer/driver use

Package Includes:
1 x 74HC125D,653 NEXPERIA Buffer / Line Driver (SOIC-14)

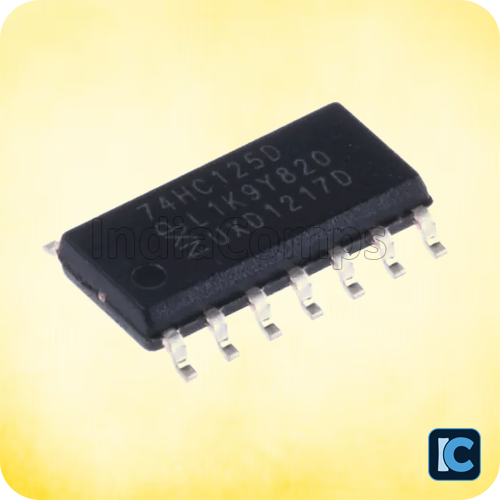

🖼️ Note: Image is for representation only.
