AOD407 P-Channel MOSFET – TO252 – -60V / -10A / 25W – Unipolar Enhancement Type

✅ Product Description:
AOD407 P-Channel MOSFET – TO252 – -60V / -10A / 25W – Unipolar Enhancement Type

The AOD407 is a high-performance P-Channel MOSFET designed for efficient power switching and control in compact electronic designs. With a drain-source voltage of -60V, drain current of -10A, and power dissipation of 25W, it offers robust and reliable performance for various load switching and power supply applications.

Featuring an enhancement-type unipolar channel, the AOD407 provides a low on-state resistance of 0.115Ω, and supports ±20V gate-source voltage, ensuring safe and efficient operation. Its 7.4nC gate charge supports fast switching times, while the TO252 (DPAK) surface-mount package ensures compact and heat-efficient board integration.

Key Features:

• Transistor Type: P-Channel MOSFET

• Channel Type: Enhancement (Unipolar)

• Voltage Rating (VDS): -60V

• Current Rating (ID): -10A

• Power Dissipation: 25W

• On-State Resistance (RDS(on)): 0.115Ω

• Gate-Source Voltage (VGS): ±20V

• Gate Charge: 7.4nC

• Package: TO252 (SMD)

• Mounting: Surface Mount Device (SMD)

Applications:

• Power switching circuits

• DC-DC converters

• Motor drivers

• Load switches

• Battery management systems

• General-purpose power control

Technical Identifiers:
Manufacturer Part Number: AOD407
TME Symbol: AOD407

Package Includes:
1 x AOD407 P-Channel MOSFET (TO252 Package)

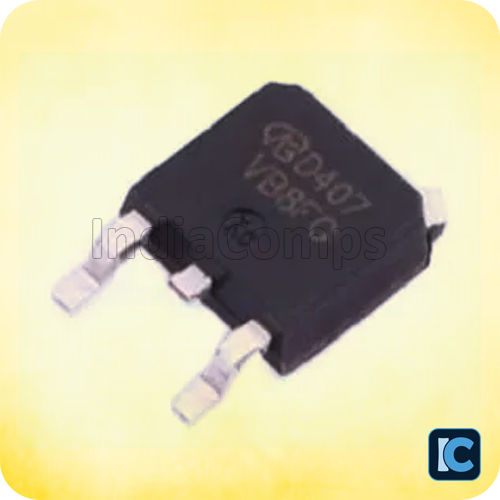

🖼️ Note: Image is for representation purpose only.
