ISO3082DWR Isolated RS-485/RS-422 Half-Duplex Transceiver – 2.5kVrms – SOIC-16 – TI

The Texas Instruments ISO3082DWR is a robust, 2.5-kVrms galvanically isolated, half-duplex RS-485/RS-422 transceiver designed for reliable data transmission in electrically noisy industrial environments. Featuring integrated capacitive isolation technology, it protects communication systems from high-voltage transients, ground loops, and common-mode noise.

The device supports communication speeds up to 200 kbps and operates with independent logic-side (3.15–5.5V) and bus-side (4.5–5.5V) power supplies, making it ideal for mixed-voltage systems. With a 1/8 unit load receiver, the ISO3082DWR allows up to 256 nodes on a single RS-485 bus, enabling highly scalable designs.

Enhanced safety and reliability features include fail-safe receiver outputs, thermal shutdown protection, and ±12 kV HBM ESD protection on bus pins. Its wide operating temperature range (-40°C to +85°C) ensures dependable performance in industrial automation, motor control, energy systems, and isolated communication interfaces.

Key Features:

• Isolated RS-485/RS-422 transceiver with 2.5-kVrms isolation

• Half-duplex communication

• Supports up to 200 kbps data rate

• Separate logic-side and bus-side power domains

• Fail-safe receiver for open/short/idle bus conditions

• ±12 kV HBM ESD protection on bus interface

• 1/8 unit load allowing up to 256 nodes

• Built-in thermal shutdown protection

• Package: SOIC-16 (DWR, tape & reel)

Package Includes:
1X ISO3082DWR Isolated RS-485/RS-422 Half-Duplex Transceiver

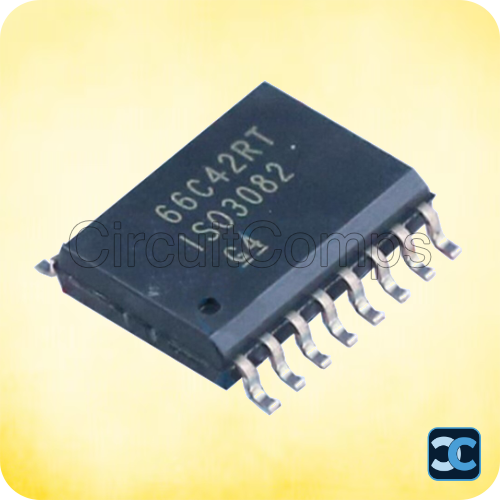

Note: Image is for representation purposes only.
