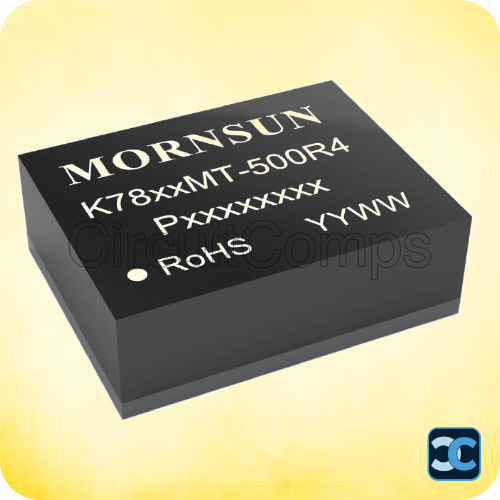

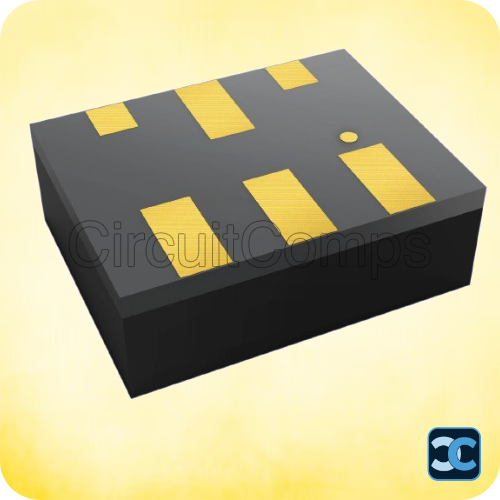

K7812MT-500R4 Mornsun 12V 0.5A Non-Isolated DC-DC Converter – High Efficiency

The K7812MT-500R4 Mornsun is a compact, high-efficiency non-isolated DC-DC converter designed for reliable 12V power regulation in industrial control, instrumentation, and power management systems. With a wide 15V to 36V input range and up to 92% efficiency, this converter provides stable output performance while maintaining extremely low no-load power consumption.

Its robust design includes short-circuit protection, excellent transient response, low ripple and noise, and a thermally efficient epoxy-encapsulated UL94 V-0 rated case. Operating at a switching frequency of 2.0MHz, the module supports compact PCB layouts and is ideal for space-restricted applications.

Features / Specs

• Input Voltage Range: 15V–36V (24V nominal)

• Output Voltage: 12V

• Max Output Current: 500mA

• Efficiency: Up to 92%

• Voltage Accuracy: ±2% (full load)

• Load Regulation: ±0.4%

• Ripple & Noise: 20mVp-p (max)

• Transient Response Deviation: ≤ 50mV

• Switching Frequency: 2.0MHz

• Cooling: Free air convection

• No-Load Input Current: 0.1mA

• Protection: Short-circuit (continuous, self-recovery)

• Case Material: Black epoxy resin, UL94 V-0 rated

• Compact Size: 9.0 × 7.0 × 3.1 mm

• Weight: 0.58g

Package Includes

1 × K7812MT-500R4 Mornsun – 12V 0.5A Non-Isolated DC-DC Converter

Note: Product images are for representation purposes only and may differ from the actual product.
