KBU810 8A 1000V Bridge Rectifier – High-Power Diode Bridge

Product Description:

The KBU810 Bridge Rectifier is a high-current, high-voltage 8A full-wave diode bridge designed for demanding AC-to-DC power conversion applications. With a 1000V peak reverse voltage rating, it delivers strong electrical performance and reliability in industrial power supplies, inverters, motor controllers, battery chargers, and high-power rectifier stages.

The rugged KBU package provides excellent heat dissipation and superior surge handling, ensuring stable operation under continuous heavy loads. By integrating four rectifier diodes in one module, the KBU810 simplifies PCB design, reduces assembly complexity, and improves overall durability in power systems.

Key Specifications:

• Model: KBU810

• Type: Full-Wave Bridge Rectifier

• Package: KBU (Through-Hole)

• Forward Current (IF): 8A continuous

• Peak Reverse Voltage (VRRM): 1000V

• Surge Current: High capability for transient loads

• Forward Voltage Drop: Low for efficient rectification

• Mounting Type: Through-hole

• Configuration: Integrated 4-diode bridge

Features:

• High current rating (8A) for heavy-duty circuits

• 1000V reverse voltage for high-voltage applications

• Excellent thermal stability and surge resistance

• Compact integrated bridge for simplified PCB layout

• Suitable for industrial-grade power systems

• Low power loss and long-term reliability

Applications:

• AC–DC power supplies

• Industrial motor controllers

• High-power battery chargers

• UPS and inverter systems

• SMPS and rectifier circuits

• Solar and renewable energy systems

Package Includes:

1 × KBU810 8A 1000V Bridge Rectifier

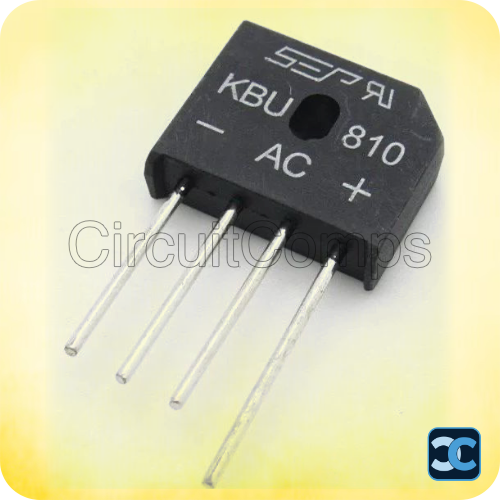

Note: Image is for representation purpose only.
