L7808CV 8V Linear Voltage Regulator IC – 1.5A – TO-220 – STMicroelectronics

The STMicroelectronics L7808CV is a fixed 8V positive linear voltage regulator designed to deliver up to 1.5A of output current for a wide range of power regulation applications. With an input voltage range of 10.5V to 35V, this regulator provides a stable and reliable 8V output suitable for analog circuits, sensors, motor drivers, and embedded electronics.

Built with integrated protection features including thermal overload shutdown, short-circuit protection, and safe-area protection, the L7808CV ensures dependable and safe operation under demanding conditions. Its industry-standard TO-220 (3-pin) through-hole package offers excellent heat dissipation and easy mounting for PCB and heatsink applications.

The L7808CV is widely used in robotics, power supplies, instrumentation, and general electronics requiring a stable regulated 8V source.

Key Specifications:

• Output Voltage: Fixed 8V

• Output Current: Up to 1.5A

• Input Voltage Range: 10.5V to 35V

• Output Voltage Tolerance: ±4% (standard)

• Dropout Voltage: ~2V at 1A

• Protection Features:

  • Thermal overload protection

  • Short-circuit protection

  • Safe-area overload protection

• Package: TO-220 (through-hole, 3-pin)

Applications:
Power supplies, communication equipment, motor drivers, embedded systems, automation circuits, and general regulated power output needs.

Package Includes:
1 x L7808CV 8V Linear Voltage Regulator IC

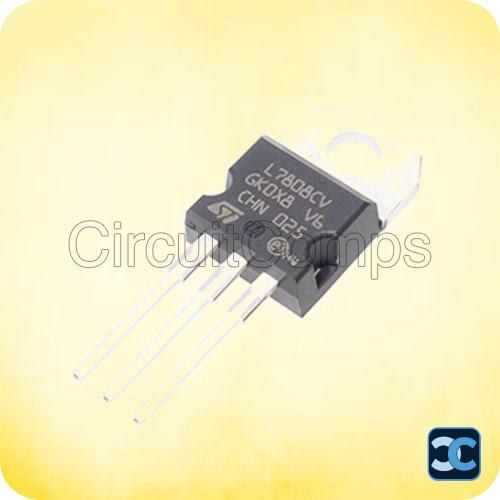

Note: Image is for representation purpose only.
